AR01X-1250-HM12

[2% off $362.00 ] LIKA ELECTRONIC AR01 SERIES INCREMENTAL

$354.76USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

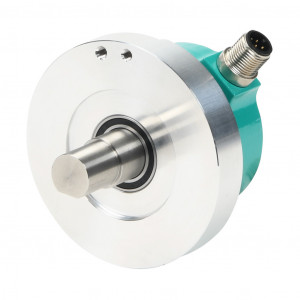

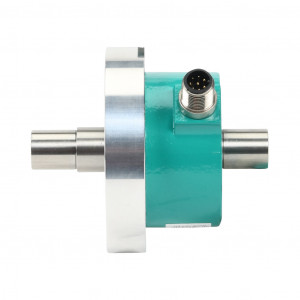

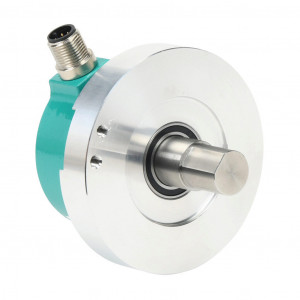

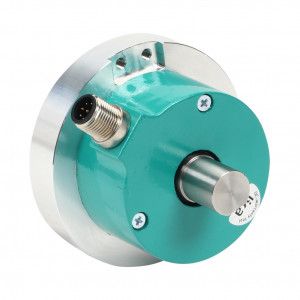

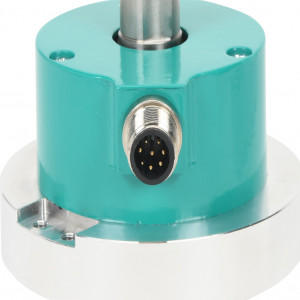

LIKA ELECTRONIC AR01 SERIES INCREMENTAL (QUADRATURE) ROTARY ENCODER, REPLACEMENT, MEDIUM DUTY, 5-30 VDC, RADIAL EXIT, UNIVERSAL (LINE DRIVER OR NPN/PNP OPEN COLLECTOR) OUTPUT, 1250PPR, 15MM DUAL SHAFT, 58MM DIAMETER BODY, IP65, M12 MALE.

Modelo: AR01X-1250-HM12

Documentos:

AR01X-1250-HM12 2D Drawing

EMI Mitigation Techniques

Product Line Brochure

Lika Encoder AR01 Datasheet

FAQ

Product Cut Sheet

AR01X-1250-HM12 STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=AR01X-1250-HM12"

Debug Cantidad: "20"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Martes, 28 de Octubre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "561"

Debug idProveedor: "106"

Martes, 28 de Octubre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$354.76USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	Lika Electronic
Item	Encoder
Series	AR01
Feedback Type	Incremental (quadrature)
Encoder Type	Rotary
Replacement	Yes

Duty Rating	Medium duty
Voltage Rating	5-30 VDC
Exit Orientation	Radial
Encoder Output Type	Universal (line driver or NPN/PNP open collector)
Encoder Resolution	1250ppr
Shaft Type	Dual
Shaft Diameter	15mm
Radial Shaft Load	100N
Axial Shaft Load	100N
Frequency Response	50 kHz
Speed Rating	2000rpm
Flange Mount	No
Encoder Body Diameter	58mm
Housing Material	Aluminum alloy
IP Rating	IP65
Protection Type(s)	short circuit (between each output and common) reverse polarity
Connector Type	M12 male
For Use With	Lika Electronic AR01 series measuring wheel encoder assemblies
Requires	Lika Electronic EC-M12F8-LKM8-xx encoder cable
