[3% off $802.00 ] LS ELECTRIC LOW INERTIA DC BRUSHLESS SER
$777.94USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

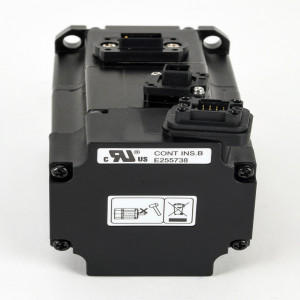

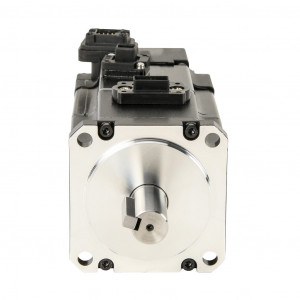

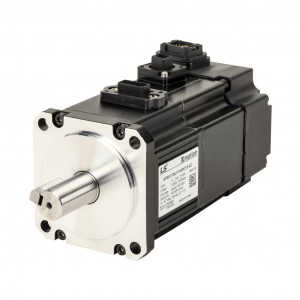

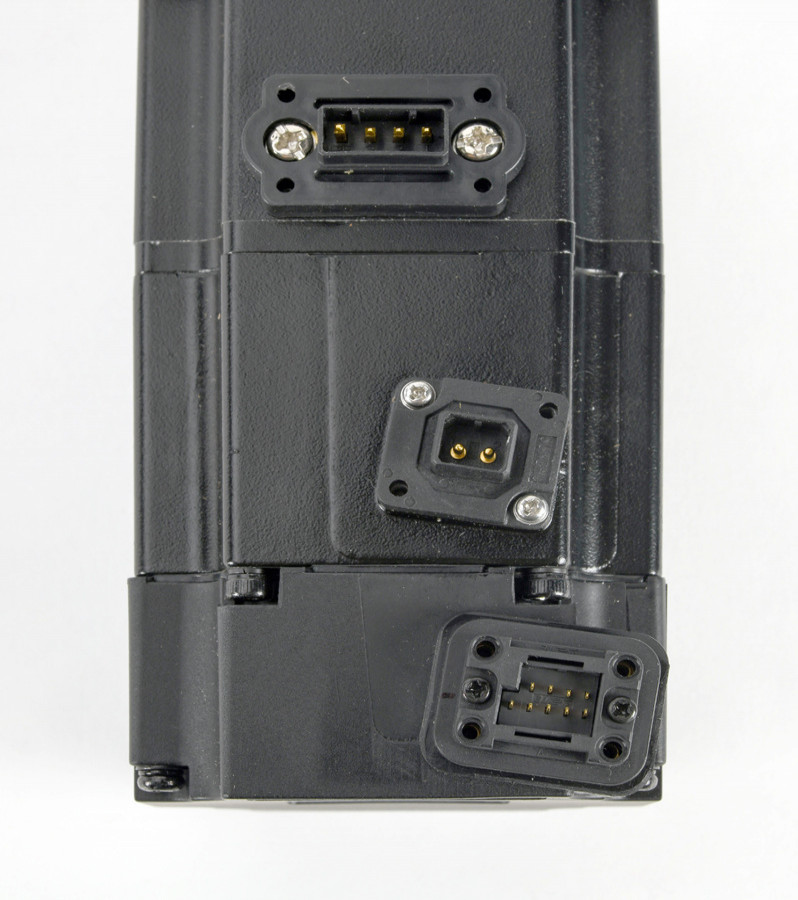

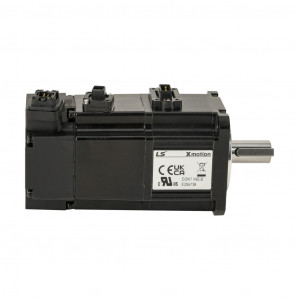

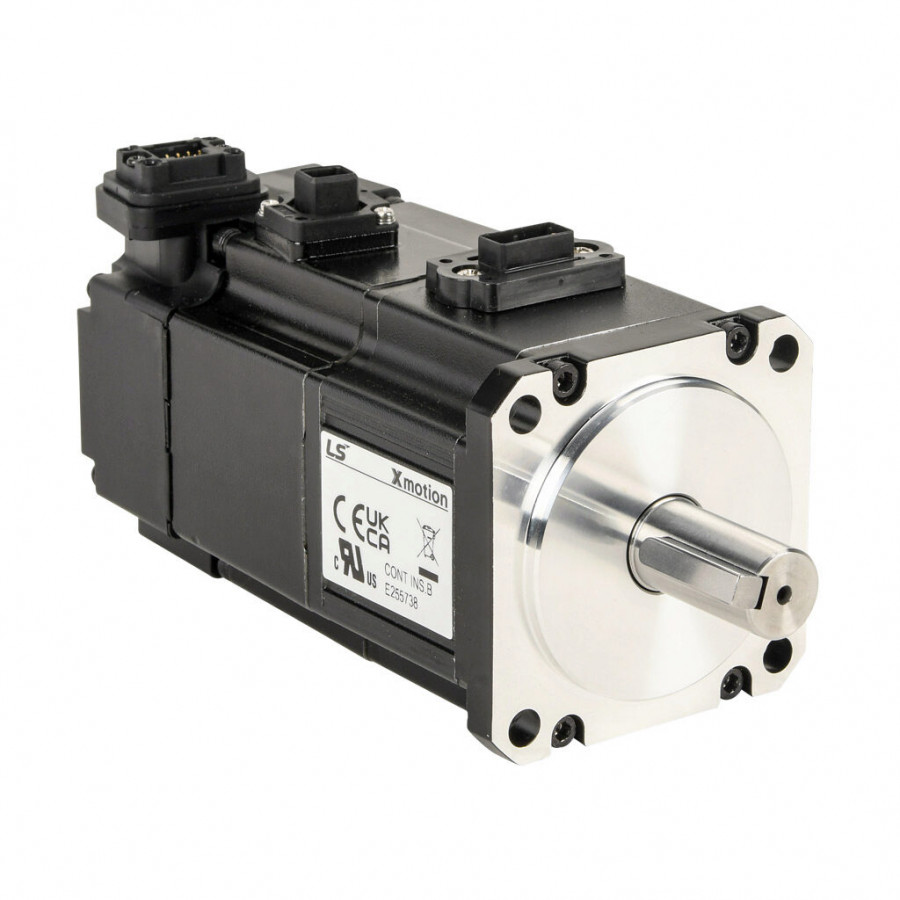

LS ELECTRIC LOW INERTIA DC BRUSHLESS SERVO MOTOR, 100W, 3-PHASE INPUT, 19-BIT (524288 PPR) ENCODER, INTEGRATED BRAKE. FOR USE WITH LS ELECTRIC PHOX-03-080NS-AD 3A DRIVE.
Este producto incluye
Envío gratis
* Aplican restricciones
Fecha Entrega:
Precio (no incluye IVA):
$777.94USD
Atributos del producto
| Brand | LS Electric |
|---|---|
| Item | Servo motor |
| Performance Level | Low inertia |
| Voltage Type | DC |
| Motor Type | Brushless |
| Power Rating | 100W |
| Number of Input Phases | 3 |
|---|---|
| Rated Speed | 3000rpm |
| Maximum Speed | 3300rpm |
| Amperage Rating | 2.5A |
| Holding Torque Rating | 2.8 lb-in |
| Encoder Resolution | 19-bit (524288 ppr) |
| Integrated Brake | Yes |
| Motor Frame | 60mm |
| IP Rating | IP67 |
| Shaft Type | Single |
| Shaft Diameter | 14mm |
| Steps per Revolution | Up to 19-bit (524288 ppr) |
| For Use With | LS Electric PHOX-03-080NS-AD 3A drive |
| Includes | Motor shaft key |
| Requires | LS Electric APCV-PxxxLS-AD power cables, APCV-ExxxES1-AD encoder cablesand APCV-BxxxQS-AD brake cables |
¿Porqué SDI Industrial Store?
Compra rápido, seguro y sencillo
La mejor calidad de servicio
Garantía directa con nosotros
Envíos Gratis en compras mayores a $ 650.00
Productos recomendados
-

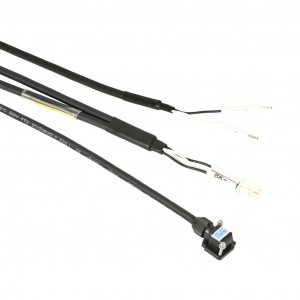

LS ELECTRIC ENCODER FEEDBACK FLEX CABLE,
