[3% off $354.00 ] TRUMETER ADM200 ADVANCED GRAPHICAL MULTI
$343.38USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

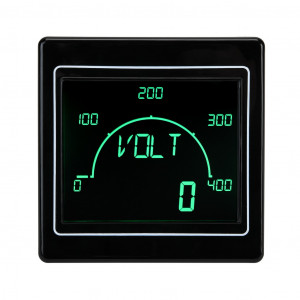

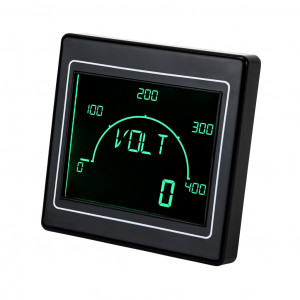

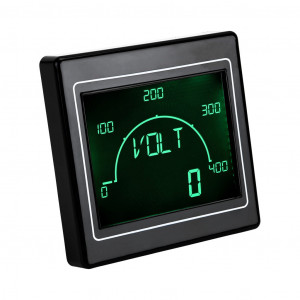

TRUMETER ADM200 ADVANCED GRAPHICAL MULTI
Fecha Entrega:
Precio (no incluye IVA):
$343.38USD
Atributos del producto
| Brand | Trumeter |
|---|---|
| Item | Graphical multi-function meter |
| Series | ADM200 |
| Application | Advanced |
| Display Type | 4in negative backlit LCD configurable to multiple RGB colors |
| Input Current Signal Range | 0-5A |
| Input Voltage Signal Range | 0-600 VAC/VDC, 0-500 mVDC (shunt) |
|---|---|
| Input Frequency Signal Range | 0-400 Hz |
| Discrete Output Type | Open collector (34 VDC/0.5A) |
| Output Current Signal Range | 4-20 mA |
| Operating Voltage | 12-24 VAC/VDC |
| Accuracy | 0.5\% current, 0.5\% voltage, 0.5\% power, 0.1\% frequency |
| Communication | Modbus RTU and Modbus TCP |
| IP Rating | IP65 |
| Mounting | Panel |
| Mounting Hole Size | 68 x 68mm (2.68 x 2.68in) |
| Additional Information | Configurable using the free downloadable utility software. User customizable display parameters are static or based on alarm threshold |
