[3% off $197.00 ] TRUMETER ADM100 STANDARD GRAPHICAL POWER
$191.09USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

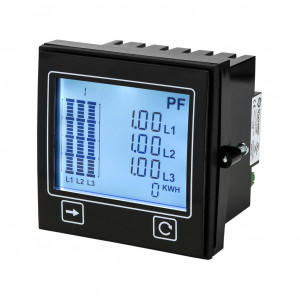

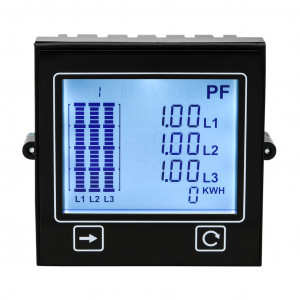

TRUMETER ADM100 STANDARD GRAPHICAL POWER
Fecha Entrega:
Precio (no incluye IVA):
$191.09USD
Atributos del producto
| Brand | Trumeter |
|---|---|
| Item | Graphical power meter |
| Series | ADM100 |
| Application | Standard |
| Display Type | 3in positive backlit LCD configurable to white, green, red |
| Input Current Signal Range | 0-5A |
| Input Voltage Signal Range | 0-600 VAC (L-L), 10-300 VAC (L-N) |
|---|---|
| Discrete Output Type | Open collector (24 VDC/0.15A) |
| Output Current Signal Range | 4-20 mA |
| Operating Voltage | 100-277 VAC |
| Accuracy | 1\% current, 1\% voltage, 1\% frequency, 1\% power, 5\% THD |
| Communication | Modbus RTU |
| NEMA Rating | 4/12 |
| IP Rating | IP65 |
| Mounting | Panel |
| Mounting Hole Size | 68 x 68mm (2.68 x 2.68in) |
| Additional Information | Configurable using the free downloadable utility software. User customizable display parameters are static or based on alarm threshold |
