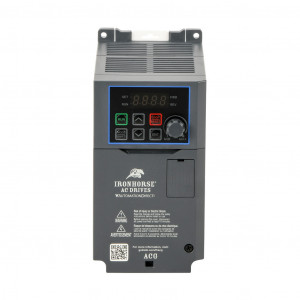

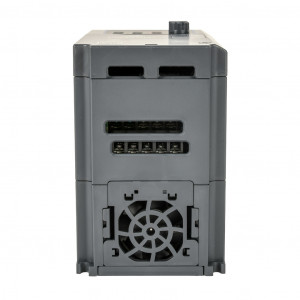

IRONHORSE ACG SERIES AC GENERAL PURPOSE
$229.00USD
Precio no incluye IVAIRONHORSE ACG SERIES AC GENERAL PURPOSE DRIVE, ENCLOSED, 460 VAC, 1/2HP WITH 3-PHASE INPUT, 1/6HP WITH 1-PHASE INPUT, SVC OR V/HZ MODE, A FRAME, RS-485, MODBUS, 100KA SCCR. OPTIONAL ETHERNET/IP AND MODBUS TCP CARD AVAILABLE.
Marca: IRONHORSEModelo: ACG-40P5
Documentos:
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Miércoles, 11 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$229.00USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Drive |
| Controller Type | General purpose |
| Series | ACG |
| Voltage Type | AC |
| Nominal Drive Input Voltage | 460 VAC |
| Nominal Drive Output Voltage | 460 VAC |
|---|---|
| Number of Input Phases | 3 and 1 |
| Number of Output Phases | 3 |
| Horsepower By Input Phase | 1/2hp with 3-phase input, 1/6hp with 1-phase input |
| Amperage Rating | 1.3A with 3-phase input and 0.7A with 1-phase input |
| Variable Torque Amperage Rating | 2A |
| Control Mode | SVC or V/Hz |
| Safe Torque Off (STO) | No |
| Temperature Rating | -10 to 50 deg C |
| Enclosure Type | Enclosed |
| IP Rating | IP20 |

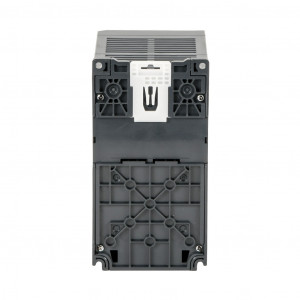

| Mounting | 35mm DIN rail, panel or wall |
| Frame Size | A |
| Dynamic Braking | Integrated dynamic braking |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Input Signal | 4-20 mA, voltage or potentiometer input |
| Output Type | PWM output |
| Reverse Capability | Built-in |
| Internally Bypassed | No |
| Carrier Frequency Range | 2-15 kHz |
| Output Frequency Range | 0.1-400 Hz |
| Number of Analog Input Channels | 2 |
| Number Of Input Channels | 2 |
| Analog Input Signal Type | Current/voltage |
| Number of Non-Isolated Analog Input Commons | 1 |
| Number of Points per Analog Input Common | 2 |
| Input Resolution | 10-bit |
| Input Current Signal Range | Input current signal range(s) of 4-20 mA |
| Input Voltage Signal Range | Input voltage signal range(s) of +/- 10 VDC |
| Number of Analog Output Channels | 1 |
| Number Of Output Channels | 1 |
| Analog Output Signal Type | Voltage |
| Number of Non-Isolated Analog Output Commons | 1 |
| Number of Points per Analog Output Common | 1 |
| Output Resolution | 10-bit |
| Output Voltage Signal Range | 0-10 VDC |
| Number of Discrete Input Points | 5 |
| Nominal Discrete Input Voltage | 24 VDC |
| Discrete Input Type | Sinking/sourcing |
| Number of Non-Isolated Discrete Input Commons | 1 |
| Number of Points per Discrete Input Common | 5 |
| Number of Discrete Output Points | 2 |
| Nominal Discrete Output Voltage | 250 VAC and 30 VDC |
| Discrete Output Type | Relay |
| Relay Configuration | (1) Form C (SPDT) relay, (1) Form A (SPST) relay |
| Number of Isolated Discrete Output Commons | 2 |
| Number of Points per Discrete Output Common | 1 |
| Load Current | 1A/point |
| Fuse Type | User-supplied external fuse |
| SCCR Rating | 100kA SCCR |
| Connector Type | Screw terminals |
| For Use With | 3-phase induction motors |
| Additional Information | Optional EtherNet/IP and Modbus TCP card available |
