WAGO INDUSTRIAL LEAN MANAGED ETHERNET SW



$713.00USD

Precio no incluye IVA

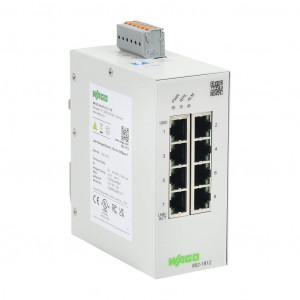

WAGO INDUSTRIAL LEAN MANAGED ETHERNET SWITCH, 8 PORTS, (8) ETHERNET GIGABIT (RJ45) PORT(S), MODBUS TCP AND SNMP, -40 TO +60 DEG C, METAL HOUSING, IP30, 35MM DIN RAIL MOUNT.

Modelo: 852-1812

---

Compartir

Documentos:

852-1812 2D Drawing

Port Security Advanced

Product Line Brochure

None Available

WAGO Lean Managed Switch Firmware

None Available

Manufacturer's Product Manual

Product Cut Sheet

Manufacturer's Product Insert

None Available

None Available

852-1812 STP 3D Model

Technical Specifications

Este producto incluye

Envío gratis

* Aplican restricciones

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=852-1812"

Debug Cantidad: "19"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 20 de Octubre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "357"

Debug idProveedor: "106"

Lunes, 20 de Octubre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***


Precio (no incluye IVA):

$713.00USD

Cantidad:

Agregar a carrito Comprar ahora Agregar a Favoritos

Atributos Arriba

Atributos del producto

Brand	WAGO
Item	Ethernet switch
Grade	Industrial
Switch Type	Lean managed
Number of Ports	8
Communication Port and Connection Type(s)	<ul class="techattribute"><li>(8) Ethernet Gigabit (RJ45)</li></ul>

---

Ver más

---

Communication Standard(s)	IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/FX IEEE 802.3ab 1000Base-T IEEE 802.3x Flow Control IEEE 802.1d Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1q VLAN Tagging IEEE 802.1p QoS/CoS IEEE 802.1x Port Authentication IEEE 802.1ab Link Layer Discovery Protocol (LLDP) IEEE 802.3az Energy Efficient Ethernet (EEE) ITU-T G8032v1/v2 Ethernet Ring Protection Switching (ERPS)
Port Protocol(s)	Modbus TCP SNMP webserver (secure HTTPs)
Port Speed(s)	10/100/1000 Mbps auto-detect
Redundant Input Power	Yes
Nominal Input Voltage	24-48 VDC
Number of Output Points	1
Nominal Output Voltage	24 VDC
Relay Configuration	(1) Form A (SPST) relay
Number Of Commons	1
Number of Points per Common	1
Load Current	1A/point
Operating Temperature	-40 to +60 deg C
Housing Material	Metal
IP Rating	IP30

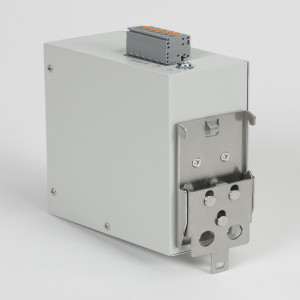

Mounting	35mm DIN rail
Programming Software	Command Line Interface (CLI), Internet browser
