[3% off $494.00 ] GAM HELICAL PINION, MODULE 2, 18 TOOTH,
$479.18USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

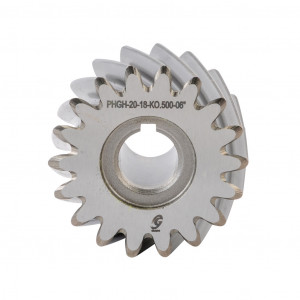

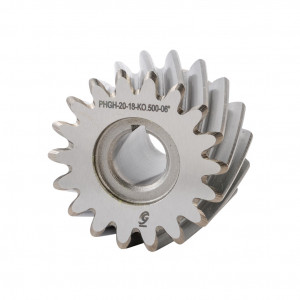

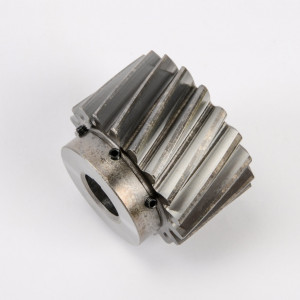

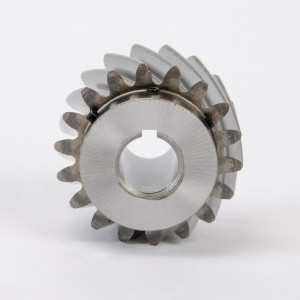

GAM HELICAL PINION, MODULE 2, 18 TOOTH, KEYED SHAFT MOUNT. FOR USE WITH SUREGEAR PGCN34 SERIES GEARBOXES.
Fecha Entrega:
Precio (no incluye IVA):
$479.18USD
Atributos del producto
| Brand | GAM |
|---|---|
| Item | Pinion |
| Tooth Profile | Helical |
| Pressure Angle | 20 degrees |
| Module | 2 |
| Pitch Diameter | 38.197mm |
| Number of Teeth | 18 |
|---|---|
| Travel per Rotation | 120mm |
| Maximum Force Feed | 2.8 kN |
| Mounting | Keyed shaft |
| Mounting Distance | 41.1mm |
| Material | 4140 carbon steel |
| Hardness | 55 - 60 HRC |
| Finish | Ra 0.8 |
| Precision Grade | ISO Q06 |
| For Use With | SureGear PGCN34 series gearboxes |
