[3% off $410.00 ] MURRELEKTRONIK IO-LINK HUB, UP TO (16) D
$397.7USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

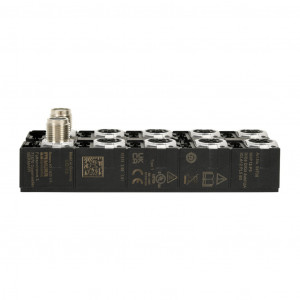

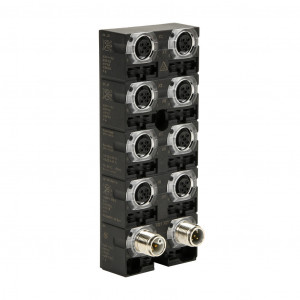

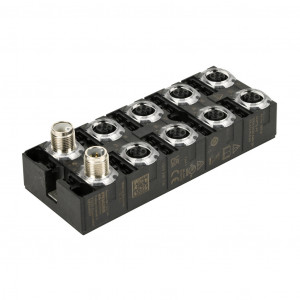

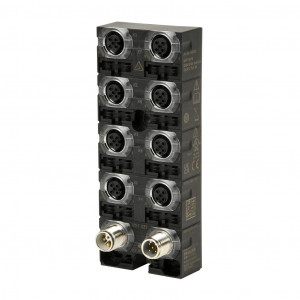

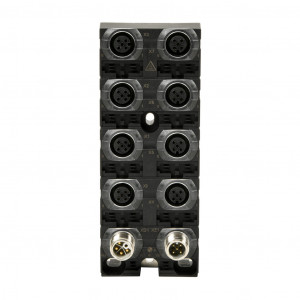

MURRELEKTRONIK IO-LINK HUB, UP TO (16) DISCRETE I/O POINTS, (8) 5-PIN M12 A-CODED PORTS, 24 VDC, IO-LINK V1.1.2 (COMPATIBLE WITH V1.1.3), IO-LINK CLASS A DEVICE, 12A, 4A/PORT, IP68. REQUIRES IO-LINK MASTER.
Fecha Entrega:
Precio (no incluye IVA):
$397.7USD
Atributos del producto
| Brand | Murrelektronik |
|---|---|
| Item | IO-Link hub |
| Number of Discrete I/O Points | Up to (16) |
| Discrete I/O Port Type(s) | (8) 5-pin M12 A-coded |
| Nominal Input Voltage | 24 VDC |
| Discrete Input Type | Sinking |
| Number of Isolated Discrete Input Commons | 2 |
|---|---|
| Number of Points per Discrete Input Common | 8 |
| Nominal Output Voltage | 24 VDC |
| Discrete Output Type | Sourcing |
| Number of Isolated Discrete Output Commons | 2 |
| Number of Points per Discrete Output Common | 8 |
| IO-Link Version | IO-Link v1.1.2 (compatible with v1.1.3) |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| External Power Requirement | 24 VDC |
| Amperage Rating | 12A |
| Load Current | 4A/port |
| Indicator | LED |
| IP Rating | IP68 |
| Temperature Rating | -25 to 70 deg C |
| Includes | Marking tags |
| Requires | IO-Link master |
| Programming Software | Murrelektronik IO-Link Device Tool v4.0 or later |
