[4% off $714.00 ] SOCOMEC DIRIS A20 SERIES MULTI-FUNCTION
$685.44USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

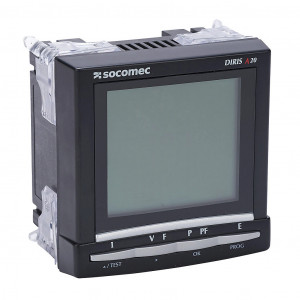

SOCOMEC DIRIS A20 SERIES MULTI-FUNCTION POWER METER, 0.5% ACTIVE POWER ACCURACY, CURRENT AND VOLTAGE INPUT, 3-LINE BACKLIT LCD DISPLAY, OPTIONAL PLUG-IN MODULES FOR OUTPUT, 110-240 VAC/120-250 VDC OPERATING VOLTAGE.
Este producto incluye
Envío gratis
* Aplican restricciones
Fecha Entrega:
Precio (no incluye IVA):
$685.44USD
Atributos del producto
| Brand | Socomec |
|---|---|
| Item | Multi-function power meter |
| Series | DIRIS A20 |
| Display Type | 3-line backlit LCD |
| Input Current Signal Range | 0-5A |
| Input Voltage Signal Range | 50-500 VAC (L-L), 28-289 VAC (L-N) |
| Operating Voltage | 110-240 VAC/120-250 VDC |
|---|---|
| Accuracy | 0.5% active power |
| System Configuration | 1-phase, 2-phase, 3-phase 3-wire, 3-phase 4-wire |
| Mounting | Panel |
| Mounting Hole Size | 92mm x 92mm |
| Application | Measurement/metering (currents, voltages, frequency, active, reactive and apparent power, power factor, and harmonics) |
| Additional Information | An integrated test function can be utilized to detect incorrect wiring, accepts up to 2 output or communication plugin modules |
¿Porqué SDI Industrial Store?
Compra rápido, seguro y sencillo
La mejor calidad de servicio
Garantía directa con nosotros
Envíos Gratis en compras mayores a $ 650.00
Productos recomendados
-

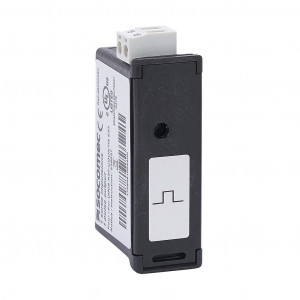

SOCOMEC CONFIGURABLE OUTPUT MODULE, FOR
