[16% off $83.00 ] WEG ELECTRIC CFW500 SERIES RELAY/ANALOG
$69.72USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

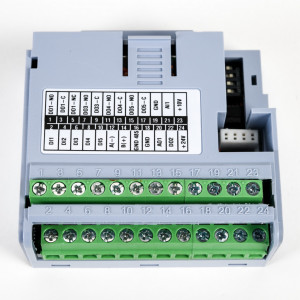

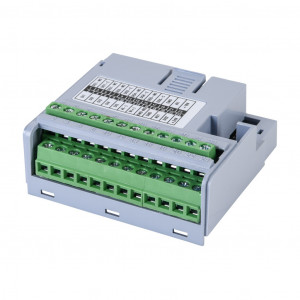

WEG ELECTRIC CFW500 SERIES RELAY/ANALOG COMBO MODULE, ANALOG INPUT: 1-CHANNEL, CURRENT/VOLTAGE, ANALOG OUTPUT: 1-CHANNEL, CURRENT/VOLTAGE, DISCRETE INPUT: 5-POINT, SINKING/SOURCING, DISCRETE OUTPUT: 5-POINT, RELAY, (3) FORM A (SPST) RELAYS, (1) FORM C (SPDT) RELAY.
Modelo: 14968050
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$69.72USD
Atributos del producto
| Brand | WEG Electric |
|---|---|
| Item | Combo module |
| I/O Module Type | Relay/analog |
| Series | CFW500 |
| Number of Analog Input Channels | 1 |
| Analog Input Signal Type | Current/voltage |
| Analog Input Type | Sinking and sourcing |
|---|---|
| Number of Non-Isolated Analog Input Commons | 1 |
| Number of Points per Analog Input Common | 1 |
| Input Resolution | 10-bit |
| Input Current Signal Range | 0-20 mA and 4-20 mA |
| Input Voltage Signal Range | 0-10 VDC |
| Number of Analog Output Channels | 1 |
| Analog Output Signal Type | Current/voltage |
| Number of Non-Isolated Analog Output Commons | 1 |
| Number of Points per Analog Output Common | 1 |
| Output Resolution | 10-bit |
| Output Current Signal Range | 0-20 mA and 4-20 mA |
| Output Voltage Signal Range | 0-10 VDC |
| Number of Discrete Input Points | 5 |
| Nominal Input Voltage | 24 VDC |
| Discrete Input Type | Sinking/sourcing |
| Number of Non-Isolated Discrete Input Commons | 1 |
| Number of Points per Discrete Input Common | 1 |
| Number of Discrete Output Points | 5 |
| Nominal Output Voltage | 240 VAC/24 VDC |
| Discrete Output Type | Relay |
| Relay Configuration | (3) Form A (SPST) relays, (1) Form C (SPDT) relay |
| Number of Non-Isolated Discrete Output Commons | 1 |
| Number of Points per Discrete Output Common | 1 |
| Load Current | 0.5A/point relay, 150mA/point discrete |
| Communication Port and Connection Type(s) | (1) RS-485 (3-pin terminal) port(s) |
| Port Protocol(s) | Modbus RTU Master/Slave |
| Port Speed(s) | Up to 38.4k baud |
| Fuse Type | User-supplied external fuse |
| For Use With | WEG CFW500 series AC drives |
