STEGO FILTER FAN INTAKE FAN, SIDE MOUNT,
$488.00USD
Precio no incluye IVASTEGO FILTER FAN INTAKE FAN, SIDE MOUNT, 176 CFM, 24 VDC OPERATING VOLTAGE, G4 (COARSE) FILTER MAT, NEMA 12, INDOOR USE ONLY, 9.84 X 9.84IN ENCLOSURE CUTOUT, RAL 7035 LIGHT GRAY.
Modelo: 018030-03
Fecha Entrega:
Unidades Disponibles: 12
Precio (no incluye IVA):
$488.00USD
Atributos del producto
| Brand | Stego |
|---|---|
| Series | Filter Fan |
| Airflow Direction | Intake |
| Item | Fan |
| Mounting | Side |
| With Air Flaps | No |
| Filter Media | G4 (coarse) filter mat |
|---|---|
| Free Airflow | 176 CFM |
| Airflow with Grill and Filter(s) | 135 CFM |
| Operating Voltage | 24 VDC |
| Power Consumption | 20W |
| Current Draw | 840 mA |
| Electrical Connection | 3-pole clamp for AWG 14 wire, 7.1 in-lb maximum clamping torque |
| Maximum Static Pressure | 27Pa |
| Operating Temperature Min/Max | 14F/158F |
| Average Noise Level | 53 dBA |
| NEMA Rating | 12 |
| Application | Indoor use only |
| IP Rating | IP54 (IP55 with optional M5 filter media) |
| Enclosure Cutout | 9.84 x 9.84in |
| Color | RAL 7035 light gray |
| Includes | Optional mounting screws |
| Additional Information | Purchase exhaust grille separately |
¿Porqué SDI Industrial Store?
Compra rápido, seguro y sencillo
La mejor calidad de servicio
Garantía directa con nosotros
Envíos Gratis en compras mayores a $ 650.00
Productos recomendados
-
STEGO ENCLOSURE DOOR SWITCH, N.O. CONTAC
STEGO ENCLOSURE DOOR SWITCH, N.O. CONTACT(S), IP20, M5 SCREW MOUNT, SCREW TERMINAL.
STEGO ENCLOSURE DOOR SWITCH, N.O. CONTACT(S), IP20, M5 SCREW MOUNT, SCREW TERMINAL.Precio no incluye IVA013520-00
$49.00 USD
-

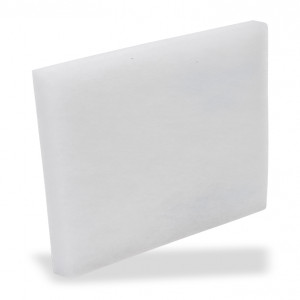

STEGO FILTER MAT, REPLACEMENT, 9.72 X 9.
STEGO FILTER MAT, REPLACEMENT, 9.72 X 9.72IN, G4 (COARSE), 350 G/M2, 94% AVERAGE ARRESTANCE. PACKAGE OF 3. FOR USE WITH 9.84 X 9.84IN STEGO FILTER FAN FANS AND EXHAUST GRILLES.
STEGO FILTER MAT, REPLACEMENT, 9.72 X 9.72IN, G4 (COARSE), 350 G/M2, 94% AVERAGE ARRESTANCE. PACKAGE OF 3. FOR USE WITH 9.84 X 9.84IN STEGO FILTER FAN FANS AND EXHAUST GRILLES.Precio no incluye IVA086080-00
$36.00 USD
-

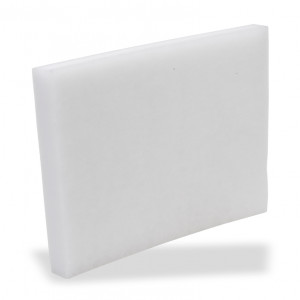

STEGO FILTER MAT, REPLACEMENT, 9.72 X 9.
