8-CH AI MODULE

• 16CH DIGITAL INPUT • PROTOCOLS:MODBUS RTU,ASCII • WATCHDOG TIMER TO RECOVER THE SYSTEM • 2500VDC ISOLATION PROTECTION

RS-232 TO RS-422/485 CONVERTER W/ ISO. REV. EE

• WIDE OPERATING TEMPERATURE: -40 ~ 85° C • POWER INOUT: 10 TO 48 VDC • AUTOMATIC RS-485 DATA FLOW CONTROL • 3000 VDC ISOLATION PROTECTION • SURGE PROTECTION RS-485 DATA LINE

• PRECISIÓN: MODO DE VOLTAJE: ±0,1 % O MEJOR, MODO DE CORRIENTE: ±0,2 % O MEJOR • MODO COMÚN ALTO: 200 VDC • PROTECCIÓN CONTRA SOBREVOLTAJE: ±60 VDC • PROTECCIÓN TVS/ESD INCORPORADA • VOLTAJE DE AISLAMIENTO: 3000 VCC • CMR A 50/60 HZ: 92 DB MÍN. • CANALES: 8 CANALES DE CONFIGURACIÓN DIFERENCIAL E INDEPENDIENTE • IMPEDANCIA DE ENTRADA: VOLTAJE: 800KΩ, CORRIENTE: 120Ω (INCORPORADO 120Ω. REGISTRO PARA ENTRADA DE CORRIENTE) PARA CURREN • TIPO DE ENTRADA: MV, V (ADMITE UNIPOLAR Y BIPOLAR), MA • TASA DE MUESTREO: 10 MUESTRAS/SEG.

• PROVIDES 2 X 10/100 MBPS ETHERNET PORTS FOR LAN REDUNDANCY • INTEGRATION OF MODBUS TCP AND MODBUS RTU/ASCII NETWORKS • SUPPORTS UP TO 921.6 KBPS, AND ANY BAUD RATE SETTING • SUPPORT UP TO 16 CONNECTIONS ON EACH SERIAL PORT UNDER MODBUS MASTER MODE AND 32 SESSIONS UNDER MODBUS SLAVE MODE. • SOFTWARE SELECTABLE RS-232/422/485 COMMUNICATION • MOUNTS ON DIN-RAIL AND WALL MOUNT • SUPPORTS SURGE PROTECTION FOR D.C. POWER PORTS WITH LINE TO LINE 2 KV, AND LINE TO EARTH 4 KV; FOR SIGNAL PORTS WITH 4 KV. • BUILT-IN 15 KV ESD PROTECTION FOR ALL SERIAL SIGNALS • AUTOMATIC RS-485 DATA FLOW CONTROL

• PROVIDES 2 X 10/100 MBPS ETHERNET PORTS FOR LAN REDUNDANCY • INTEGRATION OF MODBUS TCP AND MODBUS RTU/ASCII NETWORKS • SUPPORTS UP TO 921.6 KBPS, AND ANY BAUD RATE SETTING • SUPPORT UP TO 16 CONNECTIONS ON EACH SERIAL PORT UNDER MODBUS MASTER MODE AND 32 SESSIONS UNDER MODBUS SLAVE MODE. • SOFTWARE SELECTABLE RS-232/422/485 COMMUNICATION • MOUNTS ON DIN-RAIL AND WALL MOUNT • BUILT-IN 15 KV ESD PROTECTION FOR ALL SERIAL SIGNALS • AUTOMATIC RS-485 DATA FLOW CONTROL • SUPPORTS SURGE PROTECTION FOR D.C. POWER PORTS WITH LINE TO LINE 2 KV, AND LINE TO EARTH 4 KV; FOR SIGNAL PORTS WITH 4 KV • WIDE OPERATING TEMPERATURE

• SUPPORTS SURGE PROTECTION FOR D.C. POWER PORTS WITH LINE TO LINE 2 KV, AND LINE TO EARTH 4 KV; FOR SIGNAL PORTS WITH 4 KV. • PROVIDES 2 X 10/100 MBPS ETHERNET PORTS FOR LAN REDUNDANCY • INTEGRATION OF MODBUS TCP AND MODBUS RTU/ASCII NETWORKS • SUPPORTS UP TO 921.6 KBPS, AND ANY BAUD RATE SETTING • SUPPORT UP TO 16 CONNECTIONS ON EACH SERIAL PORT UNDER MODBUS MASTER MODE AND 32 SESSIONS UNDER MODBUS SLAVE MODE. • SOFTWARE SELECTABLE RS-232/422/485 COMMUNICATION • MOUNTS ON DIN-RAIL AND WALL MOUNT • BUILT-IN 15 KV ESD PROTECTION FOR ALL SERIAL SIGNALS • AUTOMATIC RS-485 DATA FLOW CONTROL

• PROVIDES 2 X 10/100 MBPS ETHERNET PORTS FOR LAN REDUNDANCY • PROVIDES COM PORT REDIRECTION (VIRTUAL COM), TCP AND UDP OPERATION MODES • SUPPORTS UP TO 921.6 KBPS, AND ANY BAUD RATE SETTING • ALLOWS A MAX. OF 5 HOSTS TO ACCESS ONE SERIAL PORT • ALLOWS A MAX. OF 16 HOSTS TO BE ACCESSED AS TCP CLIENT MODE • BUILT-IN 15 KV ESD PROTECTION FOR ALL SERIAL SIGNALS • PROVIDES RICH CONFIGURATION METHODS INCLUDING WINDOWS UTILITY, TELNET CONSOLE, AND WEB BROWSER • SUPPORTS 32-BIT/64-BIT WINDOWS 2000/XP/VISTA/7/8/8.1/10, WINDOWS SERVER2003/2008/2012/2016, AND LINUX • AUTOMATIC RS-485 DATA FLOW CONTROL • SUPPORTS LINE TO LINE 2 KV, LINE TO GROUND 4 KV SURGE PROTECTION

• PROVIDES 8-PORT FAST ETHERNET PORTS WITH AUTO MDI/MDI-X • SUPPORTS 10/100 MBPS AUTO-NEGOTIATION • PROVIDES COMPACT SIZE WITH DIN-RAIL/WALL MOUNT, AND IP30 METAL MECHANISM • SUPPORTS REDUNDANT 12 ~ 48 VDC POWER INPUT AND P-FAIL RELAY • EKI-2528DI SUPPORTS WIDE OPERATING TEMPERATURES FROM -40 TO 75°C • DNV CERTIFICATE

• PROVIDES 5/8 FAST ETHERNET PORTS WITH AUTO MDI/MDI-X • SUPPORTS 10/100 MBPS AUTO-NEGOTIATION • PROVIDES COMPACT SIZE WITH DIN-RAIL/WALL MOUNT, AND IP30 METAL MECHANISM • SUPPORTS REDUNDANT 12 ~ 48 VDC POWER INPUT AND P-FAIL RELAY • SUPPORTS WIDE OPERATING TEMPERATURES FROM -40 TO 75°C

• FOUR FAST ETHERNET PORTS COMPLY WITH IEEE 802.3AF/AT • POE STANDARD AND TWO GIGABIT ETHERNET PORTS • COMMUNICATES WITH SCADA SOFTWARE VIA MODBUS/TCP • COMMUNICATES WITH NMS (NETWORKING MANAGEMENT SYSTEM) VIA SNMP • PORT-BASED QOS FOR DETERMINISTIC DATA TRANSMISSION • -40~65°C OPERATING TEMPERATURE RANGE (EKI-5624PI) • IEEE 802.3AZ ENERGY EFFICIENT ETHERNET (EEE) • SUPPORTS REDUNDANT 12V~24V (9V ~ 36V) POWER INPUT AND P-FAIL RELAY • LOOP DETECTION

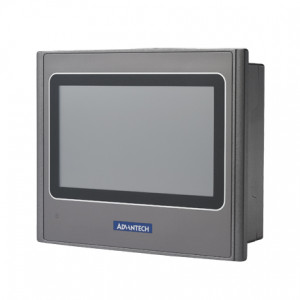

4.3" WQVGA, 32MB, 128MB(NAND), ETHERNET,MICRO-SD

[RTOS] 7" WVGA OPERATOR PANEL INSTALLED WITH HMINAVI SOFTWARE

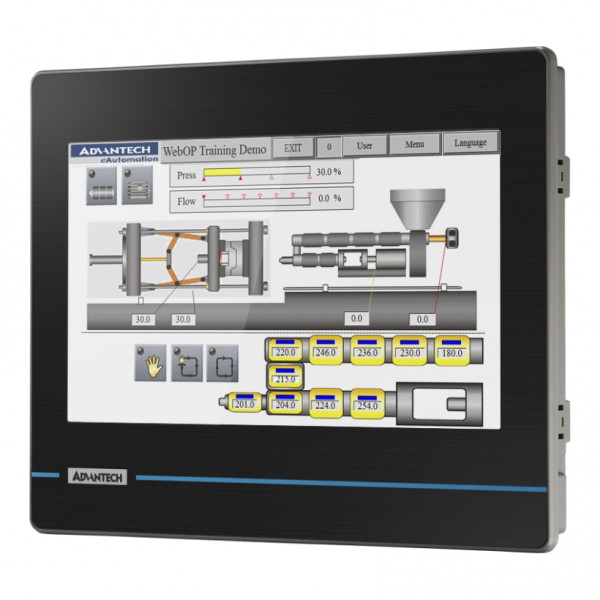

10.1" WSVGA Operator Panel Installed with HMINavi Software

TIPO DE PRODUCTO: EMBEDDED BOX COMPUTERSTIPO DE PROCESADOR: RISCFRECUENCIA: 600 MHZCAPACIDAD MÁXIMA DE MEMORIA RAM: 256 MBMEMORIA RAM INSTALADA: 0 GBVOLTAJE DE ALIMENTACIÓN OPERATIVO: 24 VDIMENSIONES: 311.8 MM X 238 MM X 54.5 MMMARCA: ADVANTECHTAMAÑO DE MEMORIA: 256 MBTIPO DE MEMORIA: DDR2
