[3% off $268.00 ] WEG ELECTRIC CFW320 SERIES AC GENERAL PU
$259.96USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

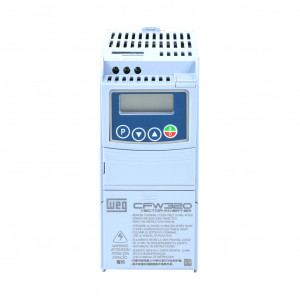

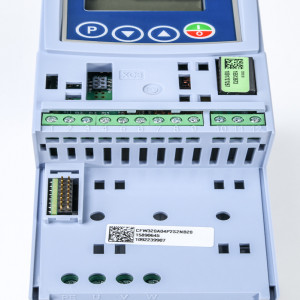

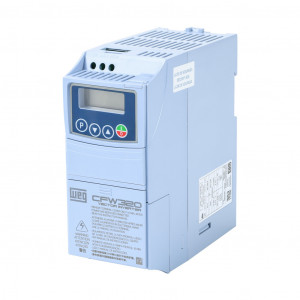

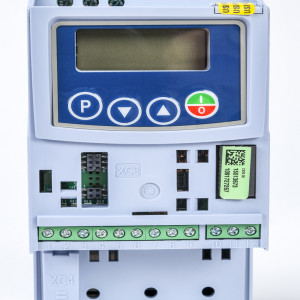

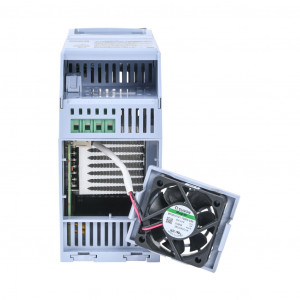

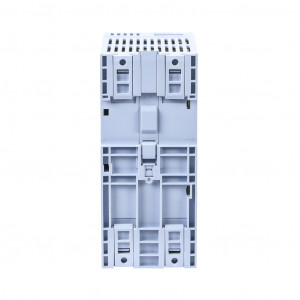

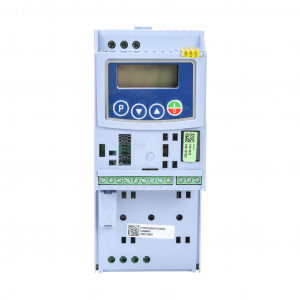

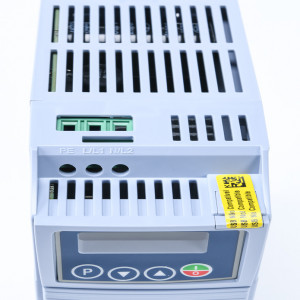

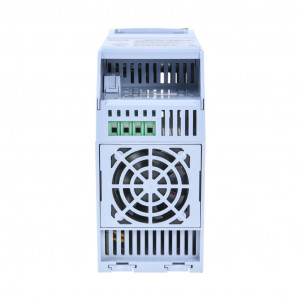

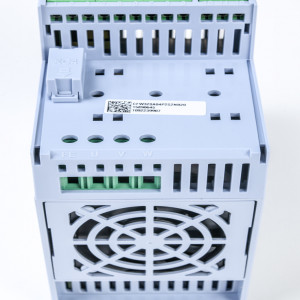

WEG ELECTRIC CFW320 SERIES AC GENERAL PURPOSE DRIVE, ENCLOSED, 120 VAC, 1HP WITH 1-PHASE INPUT, SVC, V/HZ OR VVW MODE, A FRAME. OPTIONAL COMMUNICATION AND I/O MODULES AVAILABLE.
Documentos:
Fecha Entrega:
Precio (no incluye IVA):
$259.96USD
Atributos del producto
| Brand | WEG Electric |
|---|---|
| Item | Drive |
| Controller Type | General purpose |
| Series | CFW320 |
| Voltage Type | AC |
| Nominal Drive Input Voltage | 230 VAC |
| Nominal Drive Output Voltage | 230 VAC |
|---|---|
| Number of Input Phases | 1 |
| Number of Output Phases | 3 |
| Horsepower By Input Phase | 1hp with 1-phase input |
| Amperage Rating | 4.2A |
| Control Mode | SVC, V/Hz or VVW |
| Safe Torque Off (STO) | No |
| Temperature Rating | 0 to 50 deg C |
| Enclosure Type | Enclosed |
| IP Rating | IP20 |
| Mounting | 35mm DIN rail, panel or wall |
| Frame Size | A |
| Input Signal | 4-20 mA, voltage or potentiometer input |
| Output Type | PWM output |
| Reverse Capability | Built-in |
| Internally Bypassed | No |
| Carrier Frequency Range | 2.5-15 kHz |
| Output Frequency Range | 0.1-400 Hz |
| Number of Analog Input Channels | 1 |
| Number Of Input Channels | 1 |
| Analog Input Signal Type | Current/voltage |
| Number of Non-Isolated Analog Input Commons | 1 |
| Number of Points per Analog Input Common | 1 |
| Input Resolution | 10-bit |
| Input Current Signal Range | 4-20 mA |
| Input Voltage Signal Range | 0-10 VDC |
| Number of Discrete Input Points | 4 |
| Nominal Discrete Input Voltage | 24 VDC |
| Discrete Input Type | Sinking/sourcing |
| Number of Non-Isolated Discrete Input Commons | 1 |
| Number of Points per Discrete Input Common | 4 |
| Number of Discrete Output Points | 1 |
| Nominal Discrete Output Voltage | 250 VAC |
| Discrete Output Type | Relay |
| Relay Configuration | (1) Form C (SPDT) relay |
| Number of Isolated Discrete Output Commons | 1 |
| Number of Points per Discrete Output Common | 1 |
| Load Current | 0.5A/point |
| Fuse Type | User-supplied external fuse |
| Programming Language | Ladder |
| SCCR Rating | 65kA SCCR |
| Connector Type | Screw terminals |
| For Use With | 3-phase induction motors |
| Additional Information | Optional communication and I/O modules available |
