[11% off $586.00 ] IRONHORSE HEAVY-DUTY WORM GEARBOX, 15:1
$521.54USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

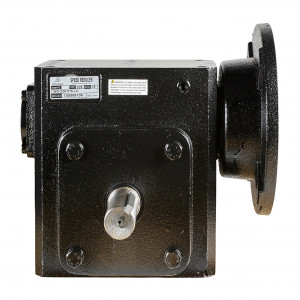

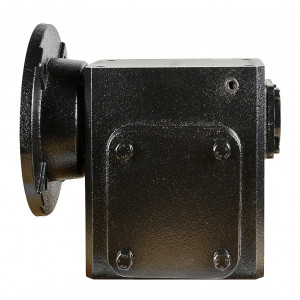

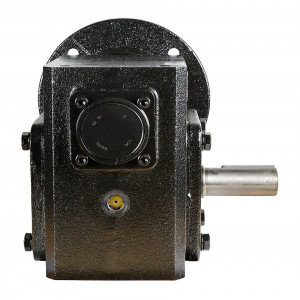

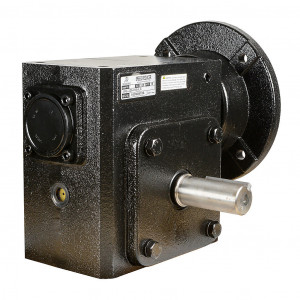

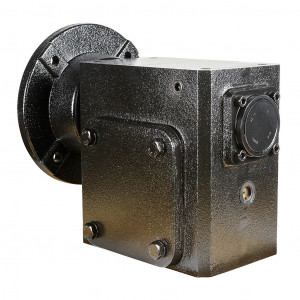

IRONHORSE HEAVY-DUTY WORM GEARBOX, 15:1 RATIO, 182/4TC-FACE INPUT, LEFT HAND, 1.375IN DIAMETER OUTPUT SHAFT, NOMINAL 5HP AT 1.0 SF, 2611 LB-IN MECHANICAL OUTPUT TORQUE, 3-1/4IN CENTER DISTANCE, CAST IRON HOUSING, TAPPED-BASE MOUNT.
Modelo: WG-325-015-LC
DIMENSIONES
Aplica cargo de flete extra
Contáctanos para cotizar
*Estamos trabajando en mejorar tu experiencia de compra con estos articulos una disculpa por los inconvenientes*
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Martes, 10 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$521.54USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Gearbox |
| Application | General purpose |
| Duty Rating | Heavy-duty |
| Gearbox Type | Worm |
| Gear Ratio | 15 |
| Speed Rating | 1750 RPM input / 113 RPM output |
|---|---|
| Input Configuration | 182/4TC-Face |
| Input Power Rating | Nominal 5hp at 1.0 SF |
| Output Configuration | Left hand |
| Output Shaft Diameter | 1.375in |
| Mechanical Output Torque | 2611 lb-in |
| Thermal Output Torque | 1527 lb-in |
| Center Distance | 3-1/4in |
| Housing Material | Cast iron |
| Mounting | Tapped-base |
| Finish | Anti-corrosion primer and paint |
| Lubrication Type | Pre-filled with lifetime synthetic lube |
| Oil Seal Type | Double-lip |
