[11% off $317.00 ] IRONHORSE HEAVY-DUTY WORM GEARBOX, 20:1
$282.13USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

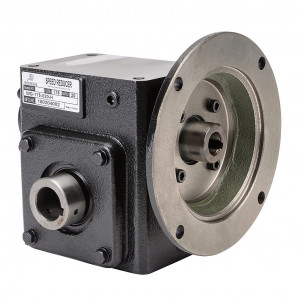

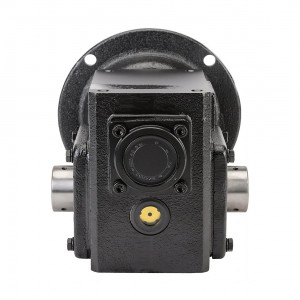

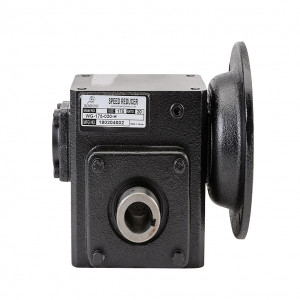

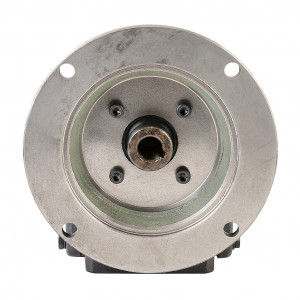

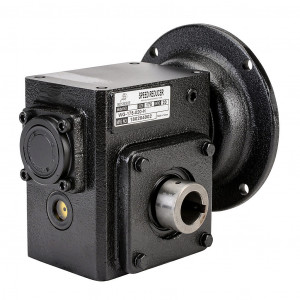

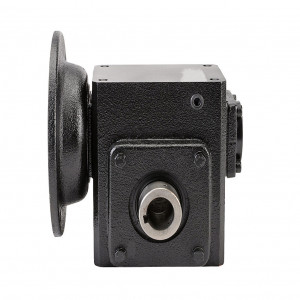

IRONHORSE HEAVY-DUTY WORM GEARBOX, 20:1 RATIO, 56C-FACE INPUT, HOLLOW, 1IN DIAMETER OUTPUT SHAFT, NOMINAL 0.75HP AT 1.0 SF, 737 LB-IN MECHANICAL OUTPUT TORQUE, 1-3/4IN CENTER DISTANCE, CAST IRON HOUSING, TAPPED-BASE MOUNT.
Modelo: WG-175-020-H
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Martes, 10 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$282.13USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Gearbox |
| Application | General purpose |
| Duty Rating | Heavy-duty |
| Gearbox Type | Worm |
| Gear Ratio | 20 |
| Speed Rating | 1750 RPM input / 88 RPM output |
|---|---|
| Input Configuration | 56C-Face |
| Input Power Rating | Nominal 0.75hp at 1.0 SF |
| Output Configuration | Hollow |
| Output Shaft Diameter | 1in |
| Mechanical Output Torque | 737 lb-in |
| Thermal Output Torque | 572 lb-in |
| Center Distance | 1-3/4in |
| Housing Material | Cast iron |
| Mounting | Tapped-base |
| Finish | Anti-corrosion primer and paint |
| Lubrication Type | Pre-filled with lifetime synthetic lube |
| Oil Seal Type | Double-lip |
