[18% off $660.00 ] TERMINATOR PULSE COMBO MODULE, 100 KHZ M
$541.2USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

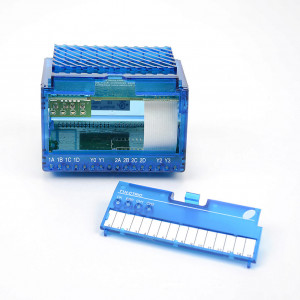

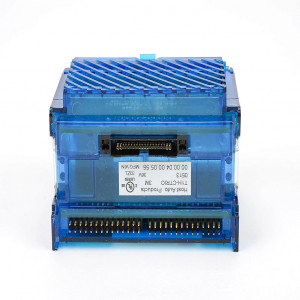

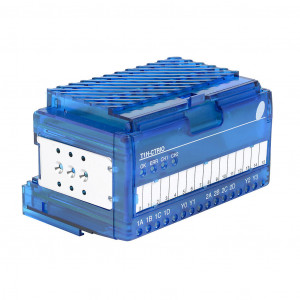

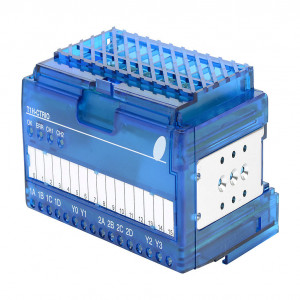

TERMINATOR PULSE COMBO MODULE, 100 KHZ MAXIMUM SWITCHING FREQUENCY, 8 HIGH-SPEED INPUT POINT(S), SINKING/SOURCING, SINGLE-ENDED ENCODER INPUT(S), 4 HIGH-SPEED OUTPUT POINT(S), SINKING/SOURCING, SINGLE-ENDED OUTPUT(S).
Modelo: T1H-CTRIO
Este producto incluye
Envío gratis
* Aplican restricciones
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Jueves, 12 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$541.2USD
Atributos del producto
| Brand | Terminator |
|---|---|
| Item | Combo module |
| I/O Module Type | Pulse |
| Maximum Switching Frequency | 100 kHz |
| Number of High-Speed Capable Input Points | 8 |
| Nominal Input Voltage | 12-24 VDC |
| Discrete Input Type | Sinking/sourcing |
|---|---|
| Number of Isolated Input Commons | 2 |
| Number Of Input Channels | 2 |
| Encoder Input Type |
|
| Number of High-Speed Capable Output Points | 4 |
| Nominal Output Voltage | 6-24 VDC |
| Discrete Output Type | Sinking/sourcing |
| Number of Isolated Output Commons | 4 |
| Load Current | 1A/point |
| Number Of Output Channels | 2 |
| Pulse Output Channel Type |
|
| High-Speed Counter(s) |
|
| Position Scaling |
|
| Interval Measurement |
|
| Duration Measurement |
|
| Frequency Measurement |
|
| Output Pulse Mode(s) |
|
| Axis Profile(s) |
|
| For Use With | T1K-16B or T1K-16B-1 terminal base, T1H-EBC, T1H-EBC100 and T1H-PBC base controllers and Do-more T1H series CPUs |
| Programming Software | Do-more Designer programming software v1.2 or later |
