[18% off $720.00 ] SURESERVO2 SERVO DRIVE, 1.5 KW, 110/230
$590.4USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

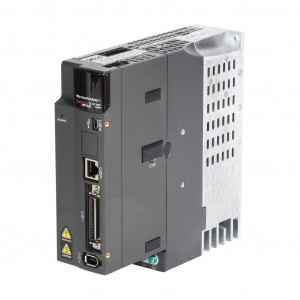

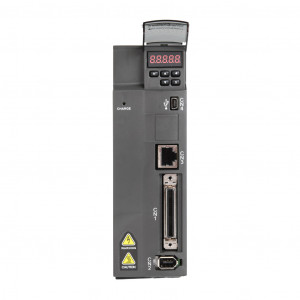

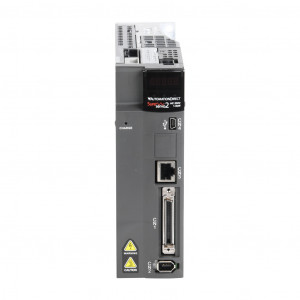

SURESERVO2 SERVO DRIVE, 1.5 KW, 110/230 VAC, 1 AND 3-PHASE, (1) RS-485 (RJ45) PORT(S), MODBUS. FOR USE WITH 1 KW AND 1.5 KW SYSTEMS. OPTIONAL ETHERNET/IP AND MODBUS TCP CARDS AVAILABLE.
Modelo: SV2A-2150
Documentos:
Este producto incluye
Envío gratis
* Aplican restricciones
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$590.4USD
Atributos del producto
| Brand | SureServo2 |
|---|---|
| Item | Servo drive |
| Voltage Type | AC |
| Amperage Rating | 12.6A at 110 VAC with 1-phase input, 14.8A at 230 VAC with 1-phase input and 8.1A at 230 VAC with 3-phase input |
| Power Rating | 1.5 kW |
| Nominal Input Voltage | 110/230 VAC |
| Number of Input Phases | 1 and 3 |
|---|---|
| Output Type | SVPWM output |
| Steps per Revolution | Up to 24-bit (16777216 ppr) |
| Encoder Output | Yes |
| Encoder Resolution | 24-bit (16777216 ppr) |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Temperature Rating | 0 to 55 deg C |
| Enclosure Type | Enclosed |
| IP Rating | IP20 |
| Mounting | Panel |
| Control Mode | Torque, velocity and position |
| Command Signal(s) |
|
| Number of Discrete Input Points | 10 |
| Discrete Input Type | Sinking/sourcing |
| Number of Discrete Output Points | 6 |
| Discrete Output Type | Sinking/sourcing |
| Number of Analog Input Channels | 2 |
| Analog Input Signal Type | Voltage |
| Input Voltage Signal Range | +/- 10 VDC |
| Number of Analog Output Channels | 2 |
| Analog Output Signal Type | Voltage |
| Output Voltage Signal Range | +/- 8 VDC |
| Tuning Mode | Easy/auto (4 methods)/manual |
| Protection Type(s) |
|
| Configuration | Software and keypad |
| For Use With | 1 kW and 1.5 kW systems |
| Additional Information | Optional EtherNet/IP and Modbus TCP cards available |
