[18% off $295.00 ] SURESTEP STEPPER MOTOR LINEAR ACTUATOR,
$241.9USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

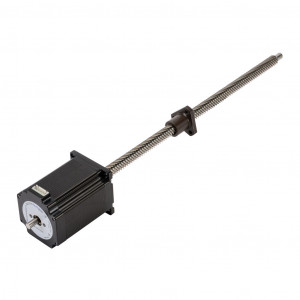

SURESTEP STEPPER MOTOR LINEAR ACTUATOR, EXTERNAL NUT, ENCODER READY, NEMA 23 FRAME, IP40, TRIPLE STACK, 3A, 12IN LEAD SCREW LENGTH, 1IN/REV, 0.5IN LEAD SCREW DIAMETER, SCREW CODE K, JOURNAL AND GROOVE END MACHINING.
Modelo: STP-LE23-3K12ADJ
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Jueves, 12 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$241.9USD
Atributos del producto
| Brand | SureStep |
|---|---|
| Item | Stepper motor linear actuator |
| Actuator Type | External nut |
| Voltage Type | DC |
| Motor Type | Brushless |
| Number of Input Phases | 2 |
| Encoder Position | Encoder ready |
|---|---|
| Encoder Resolution | Encoder ready |
| Integrated Brake | No |
| Motor Frame | NEMA 23 |
| IP Rating | IP40 |
| Shaft Type | Dual |
| Amperage Rating | 3A |
| Holding Torque Rating | 288 oz-in |
| Step Angle | 1.8-degree |
| Steps per Revolution | 200 |
| Winding Type | Bipolar |
| Screw Code | K |
| Driver Type | Lead screw |
| Motor Stack Length | Triple |
| Pitch | 0.125in |
| Screw Lead | 1in/rev |
| Lead Screw Length | 12in |
| Lead Screw Diameter | 0.5in |
| Number of Thread Starts | 8 |
| Connector Type | 6-position male |

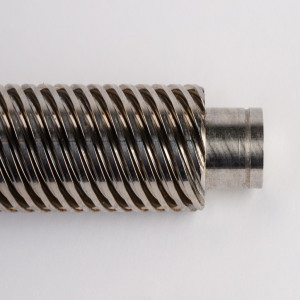

| End Machining | Journal and groove |
| Includes | (1) lead screw flange nut and (1) 1ft motor cable |
