[18% off $470.00 ] SURESTEP DC ADVANCED MICROSTEPPING STEPP
$385.4USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

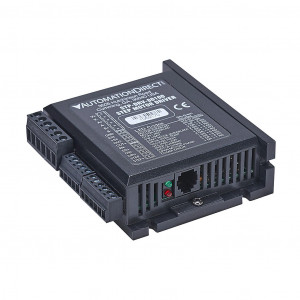

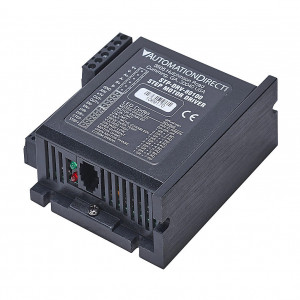

SURESTEP DC ADVANCED MICROSTEPPING STEPPER DRIVE, 10A PER PHASE, 2-PHASE OUTPUT, 24-80 VDC, BIPOLAR, VELOCITY AND POSITION MODE, 200 TO 51200 STEPS PER REVOLUTION, (1) RS-232 (RJ11) PORT(S).
Modelo: STP-DRV-80100
Documentos:
Miércoles, 12 de Febrero de 2025
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$385.4USD
Atributos del producto
| Brand | SureStep |
|---|---|
| Item | Stepper drive |
| Controller Type | Advanced microstepping |
| Voltage Type | DC |
| Amperage Rating | 10A per phase |
| Number of Output Phases | 2 |
| Nominal Input Voltage | 24-80 VDC |
|---|---|
| Winding Type Control | Bipolar |
| Output Type | MOSFET, dual H-bridge and 4-quadrant output |
| Current Control | 4-state PWM at 20 kHz |
| Steps per Revolution | 200 to 51200 |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Temperature Rating | 0 to 55 deg C |
| Enclosure Type | Enclosed |
| IP Rating | IP20 |
| Mounting | Panel |
| Control Mode | Velocity and position |
| Command Signal(s) |
|
| Number of Discrete Input Points | 1 |
| Discrete Input Type | Sinking/sourcing |
| Number of Discrete Output Points | 1 |
| Discrete Output Type | Sinking/sourcing |
| Number of Analog Input Points | 1 |
| Analog Input Signal Type | Voltage |
| Input Voltage Signal Range | 0-5 VDC |
| Tuning Mode | Pre-tuned per motor |
| Idle Current Reduction | Yes |
| Drive Features | Self-test, anti-resonance (electronic damping), torque ripple smoothing and command signal filtering |
| Protection Type(s) |
|
| Configuration | Software |
| Software Required | STP-PRO programming software |
| Includes | (1) STP-232RJ11-CBL 10ft RS-232 programming cable |
| DataSheet | https |
