[18% off $392.00 ] STRIDE BASIC IO-LINK MASTER, (8) IO-LINK
$321.44USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

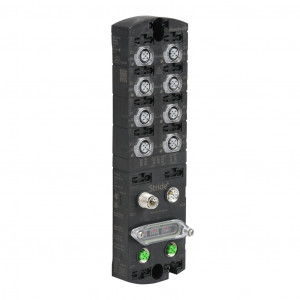

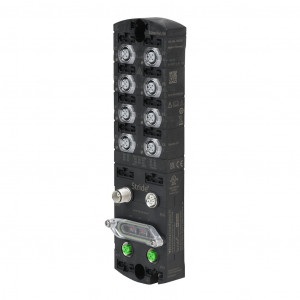

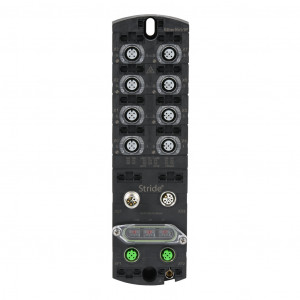

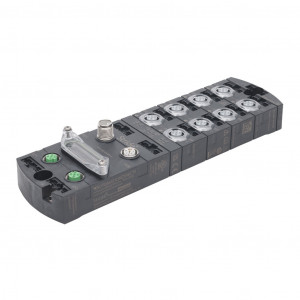

STRIDE BASIC IO-LINK MASTER, (8) IO-LINK CAPABLE I/O POINTS, UP TO (16) DISCRETE I/O POINTS, IO-LINK V1.1, ETHERNET/IP, IO-LINK CLASS A MASTER AND IO-LINK CLASS B MASTER, 8A, 1A/PORT MAX, IP65 AND IP67.
Modelo: SIOL-EI8B
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$321.44USD
Atributos del producto
| Brand | STRIDE |
|---|---|
| Item | IO-Link master |
| Series | Basic |
| Number of IO-Link Capable I/O Points | 8 |
| Number of Discrete I/O Points | Up to (16) |
| Discrete I/O Port Type(s) | (8) 5-pin M12 A-coded |
| Nominal Input Voltage | 24 VDC |
|---|---|
| Discrete Input Type | Sinking |
| Number of Non-Isolated Discrete Input Commons | 1 |
| Number of Points per Discrete Input Common | 16 |
| Nominal Output Voltage | 24 VDC |
| Discrete Output Type | Sourcing |
| Number of Non-Isolated Discrete Output Commons | 1 |
| Number of Points per Discrete Output Common | 16 |
| IO-Link Version | IO-Link v1.1 |
| Communication Port and Connection Type(s) | (2) 5-pin M12 D-coded and (8) 5-pin M12 A-coded (IO-Link) port(s) |
| Port Protocol(s) | EtherNet/IP, IO-Link Class A Master and IO-Link Class B Master |
| Port Speed(s) | 10/100 Mbps, IO-Link COM1, IO-Link COM2 and IO-Link COM3 |
| Line Side Port(s) | (1) 5-pin M12 L-coded male |
| Load Side Port(s) | (1) 5-pin M12 L-coded female |
| External Power Requirement | 24 VDC |
| Amperage Rating | 8A |
| Load Current | 1A/port max |
| Indicator | LED |
| IP Rating | IP65 and IP67 |
| Temperature Rating | -25 to 70 deg C |

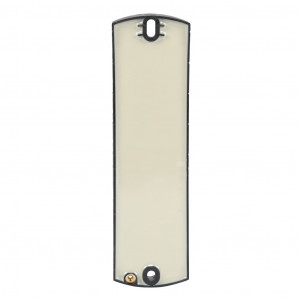

| Includes | Marking tags |
| Programming Software | Murrelektronik IO-Link Device Tool v4.0 or later |
