[3% off $344.00 ] STRIDE DISCRETE COMBO MODULE, INPUT: 8-P
$333.68USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

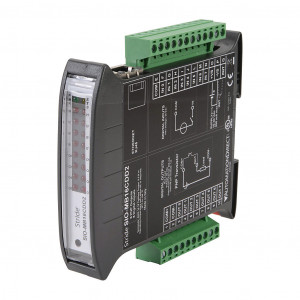

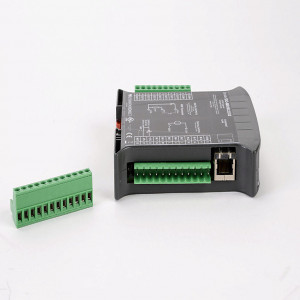

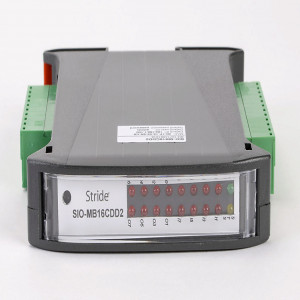

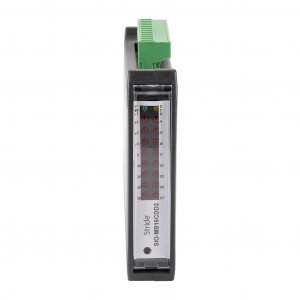

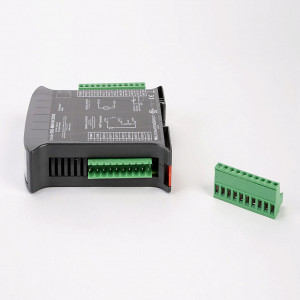

STRIDE DISCRETE COMBO MODULE, INPUT: 8-POINT, 12-24 VDC, SINKING, OUTPUT: 8-POINT, 12-24 VDC, SOURCING, 0.5A/POINT, 1A/MODULE, (1) ETHERNET (RJ45) PORT(S), MODBUS TCP SERVER.
Fecha Entrega:
Precio (no incluye IVA):
$333.68USD
Atributos del producto
| Brand | STRIDE |
|---|---|
| Item | Combo module |
| I/O Module Type | Discrete |
| Number of Input Points | 8 |
| Nominal Input Voltage | 12-24 VDC |
| Discrete Input Type | Sinking |
| Number of Non-Isolated Discrete Input Commons | 1 |
|---|---|
| Number of Points per Discrete Input Common | 8 |
| Number of Output Points | 8 |
| Nominal Output Voltage | 12-24 VDC |
| Discrete Output Type | Sourcing |
| Load Current | 0.5A/point, 1A/module |
| Number of Non-Isolated Discrete Output Commons | 1 |
| Number of Points per Discrete Output Common | 8 |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| External Power Requirement | 10-30 VDC |
| Programming Software | None, configure via Internet browser |
