[16% off $331.00 ] PROSENSE SIGNAL CONDITIONER, ISOLATED, U
$278.04USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

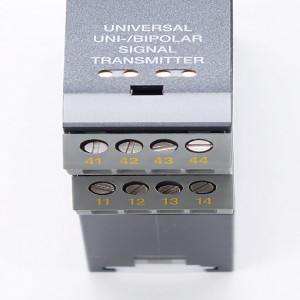

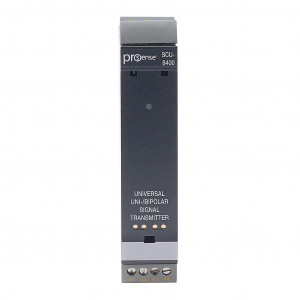

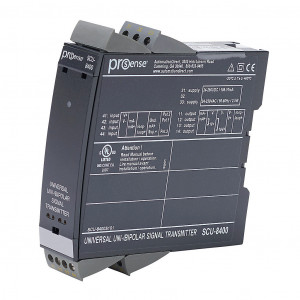

PROSENSE SIGNAL CONDITIONER, ISOLATED, UNIPOLAR OR BIPOLAR CURRENT, VOLTAGE INPUT, UNIPOLAR OR BIPOLAR CURRENT, VOLTAGE OUTPUT, 21.6-253 VAC/19.2-300 VDC OPERATING VOLTAGE, 35MM DIN RAIL MOUNT, REMOVABLE SCREW TERMINAL PLUGS.
Modelo: SCU-8400
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Viernes, 29 De Noviembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$278.04USD
Atributos del producto
| Brand | ProSense |
|---|---|
| Item | Signal conditioner |
| Isolation | Isolated |
| Field Configurable | Yes |
| Input Current Signal Range | 0-1 mA, 0-5 mA, 1-5 mA, 0-20 mA, 4-20 mA, +/- 1 mA, +/- 5 mA, +/- 10 mA, +/- 20 mA, +/-50 mA, +/- 100 mA |
| Input Potentiometer Resistance | 200-20M Ohms |
| Input Voltage Signal Range | 0-0.1 VDC, 0-1 VDC, 0.2-1 VDC, 0-2.5 VDC, 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 0-100 VDC, 0-300 VDC, +/- 0.1 VDC, +/- 1 VDC, +/- 2.5 VDC, +/- 5 VDC, +/- 10 VDC, +/- 100 VDC, +/- 300 VDC |
|---|---|
| Output Current Signal Range | 0-5 mA, 1-5 mA, 0-10 mA, 2-10 mA, 0-20 mA, 4-20 mA, 5-0 mA, 5-1 mA, 10-0 mA, 10-2 mA, 20-0 mA, 20-4 mA, +/- 5 mA, +/- 10 mA and +/- 20 mA |
| Output Voltage Signal Range | 0-1 VDC, 0.2-1 VDC, 0-2.5 VDC, 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 0-20 VDC, 4-20 VDC, 1-0 VDC, 1-0.2 VDC, 2.5-0 VDC, 5-0 VDC, 5-1 VDC, 10-0 VDC, 10-2 VDC, 20-0 VDC, 20-4 VDC, +/- 1 VDC, +/- 2.5 VDC, +/- 5 VDC, +/- 10 VDC and +/- 20 VDC |
| Operating Voltage | 21.6-253 VAC/19.2-300 VDC |
| Housing Material | Plastic |
| Mounting | 35mm DIN rail |
| Electrical Connection | Removable screw terminal plugs |
