[16% off $348.00 ] PROSENSE SIGNAL CONDITIONER, ISOLATED, C
$292.32USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

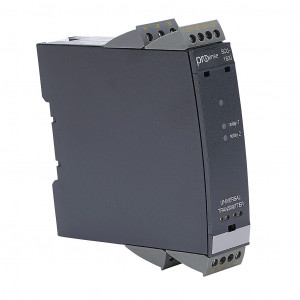

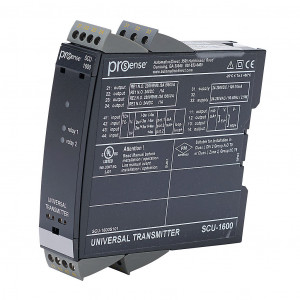

PROSENSE SIGNAL CONDITIONER, ISOLATED, CURRENT, VOLTAGE, RTD, THERMOCOUPLE OR POTENTIOMETER INPUT, DEG F OR DEG C, CURRENT, VOLTAGE AND RELAY OUTPUT, 21.6-253 VAC/19.2-300 VDC OPERATING VOLTAGE, 35MM DIN RAIL MOUNT, REMOVABLE SCREW TERMINAL PLUGS.
Modelo: SCU-1600
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Viernes, 29 De Noviembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$292.32USD
Atributos del producto
| Brand | ProSense |
|---|---|
| Item | Signal conditioner |
| Isolation | Isolated |
| Field Configurable | Yes |
| Input Current Signal Range | 0-20 mA, 4-20 mA |
| Input Potentiometer Resistance | 10-100k Ohms |
| Input RTD Signal Types | Pt10, Pt20, Pt50, Pt100, Pt200, Pt250, Pt300, Pt400, Pt500, Pt1000, Ni50, Ni100, Ni120, Ni1000, Cu10, Cu20, Cu50 and Cu100 |
|---|---|
| Input Thermocouple Signal Type | J, K, N, T, E, R, S, B, L, U, W3, W5, LR |
| Input Voltage Signal Range | 0-1 VDC, 0.2-1 VDC, 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 0-12 VDC |
| Programmable Temperature Range | Deg F or deg C |
| Output Current Signal Range | 0-20 mA, 4-20 mA, 20-0 mA and 20-4 mA |
| Output Voltage Signal Range | 0-1 VDC, 0.2-1 VDC, 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 1-0 VDC, 1-0.2 VDC, 5-0 VDC, 5-1 VDC, 10-0 VDC and 10-2 VDC |
| Relay Configuration | (2) Form A (SPST) relays |
| Load Current | 250 Vrms maximum, 2A AC, 1A DC, 500VA max |
| Operating Voltage | 21.6-253 VAC/19.2-300 VDC |
| Housing Material | Plastic |
| Mounting | 35mm DIN rail |

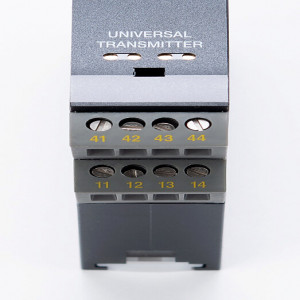

| Electrical Connection | Removable screw terminal plugs |
