[2% off $358.00 ] PROSENSE SIGNAL CONDITIONER, ISOLATED, C



$350.84USD

Precio no incluye IVA

DESCUENTO EXCLUSIVO TIENDA EN LINEA

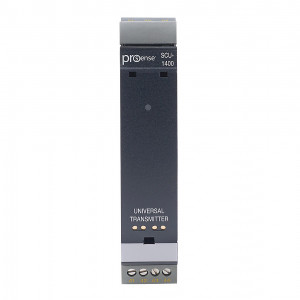

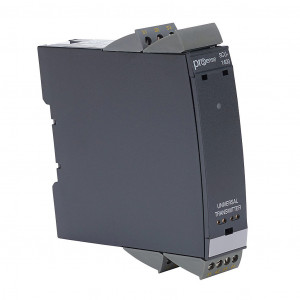

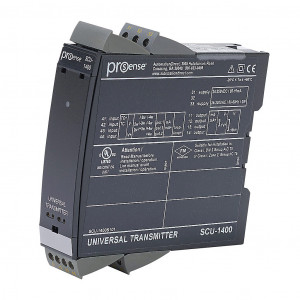

PROSENSE SIGNAL CONDITIONER, ISOLATED, CURRENT, VOLTAGE, RTD, THERMOCOUPLE OR POTENTIOMETER INPUT, DEG F OR DEG C, CURRENT OR VOLTAGE OUTPUT, 21.6-253 VAC/19.2-300 VDC OPERATING VOLTAGE, 35MM DIN RAIL MOUNT, REMOVABLE SCREW TERMINAL PLUGS.

Modelo: SCU-1400

---

Compartir

Documentos:

SCU-1400 2D Drawing

Product Line Brochure

Category 2D Drawings

Signal Conditioner Manual

Product Cut Sheet

Signal Conditioner Quick Start Guide

SCU-1400 STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=SCU-1400"

Debug Cantidad: "58"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 15 de Diciembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "189"

Debug idProveedor: "106"

Lunes, 15 de Diciembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***


Precio (no incluye IVA):

$350.84USD

Cantidad:

Agregar a carrito Comprar ahora Agregar a Favoritos

Atributos Arriba

Atributos del producto

Brand	ProSense
Item	Signal conditioner
Isolation	Isolated
Field Configurable	Yes
Input Current Signal Range	0-20 mA, 4-20 mA
Input Potentiometer Resistance	10-100k Ohms

---

Ver más

---

Input RTD Signal Types	Pt10, Pt20, Pt50, Pt100, Pt200, Pt250, Pt300, Pt400, Pt500, Pt1000, Ni50, Ni100, Ni120, Ni1000, Cu10, Cu20, Cu50 and Cu100
Input Thermocouple Signal Type	J, K, N, T, E, R, S, B, L, U, W3, W5, LR
Input Voltage Signal Range	0-1 VDC, 0.2-1 VDC, 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 0-12 VDC
Programmable Temperature Range	Deg F or deg C
Output Current Signal Range	0-20 mA, 4-20 mA, 20-0 mA and 20-4 mA
Output Voltage Signal Range	0-1 VDC, 0.2-1 VDC, 0-5 VDC, 1-5 VDC, 0-10 VDC, 2-10 VDC, 1-0 VDC, 1-0.2 VDC, 5-0 VDC, 5-1 VDC, 10-0 VDC and 10-2 VDC
Operating Voltage	21.6-253 VAC/19.2-300 VDC
Housing Material	Plastic
Mounting	35mm DIN rail

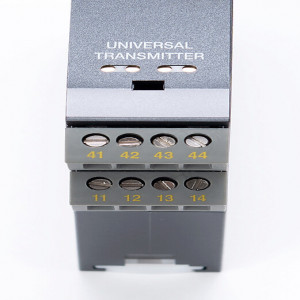

Electrical Connection	Removable screw terminal plugs
