[3% off $290.00 ] GEFRAN POTENTIOMETER LINEAR POSITION SEN
$281.3USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

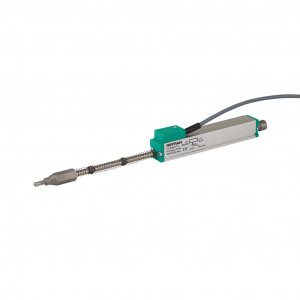

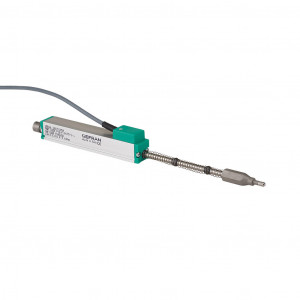

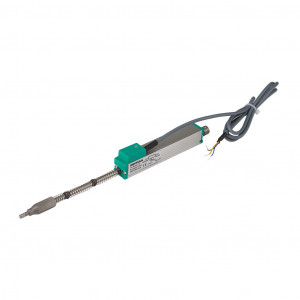

GEFRAN POTENTIOMETER LINEAR POSITION SENSOR, SPRING LOADED, 76MM STROKE, 6MM SHAFT DIAMETER, 26.5 X 22 X 113MM BODY, CHANNEL MOUNT, PIGTAIL, 3.2FT/1M CABLE LENGTH.
Modelo: PY2-F-0075-S-L
Entrega estimada:
Miércoles, 04 de Junio de 2025
Precio (no incluye IVA):
$281.3USD
Atributos del producto
| Brand | Gefran |
|---|---|
| Item | Linear position sensor |
| Transducer Type | Potentiometer |
| Action | Spring loaded |
| Stroke | 76mm |
| Shaft Diameter | 6mm |
| Resistance | 5k ohm |
|---|---|
| Head Type | 4mm ball tip |
| Head Material | Stainless steel |
| Housing Material | Anodized aluminum |
| Housing Size | 26.5 x 22 x 113mm body |
| Sensor Resolution | Infinite |
| Linearity | +/- 0.10% |
| Switching Cycles | 25,000,000 cycles |
| Mounting | Channel |
| IP Rating | IP40 |
| Connection | Pigtail |
| Number of Wires | 3 |
| Conductor Size | 0.25mm2 (24 AWG) |
| Cable Length | 3.2ft/1m |
| Jacket Material | PVC |
| Includes | Mounting hardware |
