[5% off $179.00 ] PRODUCTIVITY2000 HIGH-SPEED PULSE WIDTH
$170.05USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

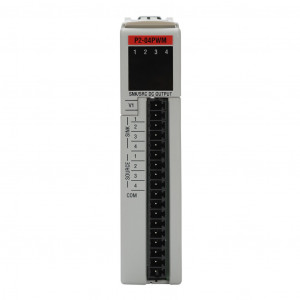

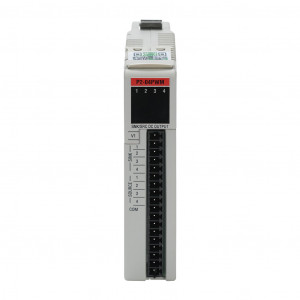

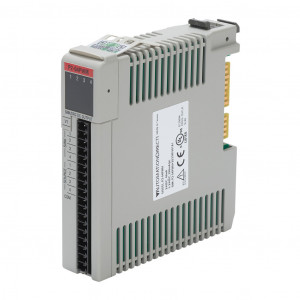

PRODUCTIVITY2000 HIGH-SPEED PULSE WIDTH MODULATION OUTPUT MODULE, 5-24 VDC, SINKING/SOURCING, 4-CHANNEL, SINGLE-ENDED OUTPUT(S), EXTERNAL 5-24 VDC REQUIRED.
Modelo: P2-04PWM
Lunes, 09 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Miércoles, 11 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$170.05USD
Atributos del producto
| Brand | Productivity2000 |
|---|---|
| Item | Output module |
| I/O Module Type | High-speed pulse width modulation |
| PWM Duty Cycle | 0-100% below 10 kHz, 5-95% at 10-20 kHz |
| PWM Frequency | 0-20 kHz |
| Nominal Output Voltage | 5-24 VDC |
| Discrete Output Type | Sinking/sourcing |
|---|---|
| Number of Non-Isolated Output Commons | 1 |
| Load Current | 0.2A/point, 0.1A/point when sinking/sourcing shared |
| Number Of Output Channels | 4 |
| Pulse Output Channel Type |
|
| External Power Requirement | 5-24 VDC |
| Requires | P2-RTB or P2-RTB-1 removable terminal block or ZIPLink pre-wired cables |
| Programming Software | Productivity Suite programming software v3.7 or later |
