[2% off $375.00 ] IRONHORSE MTR SERIES PREMIUM EFFICIENCY
$367.5USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

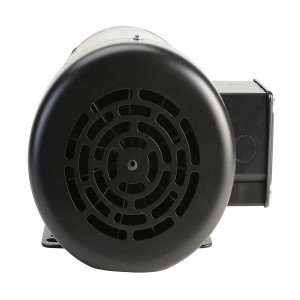

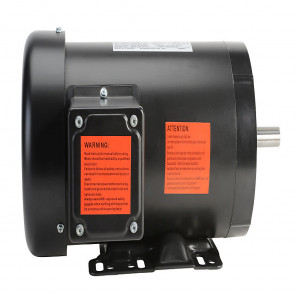

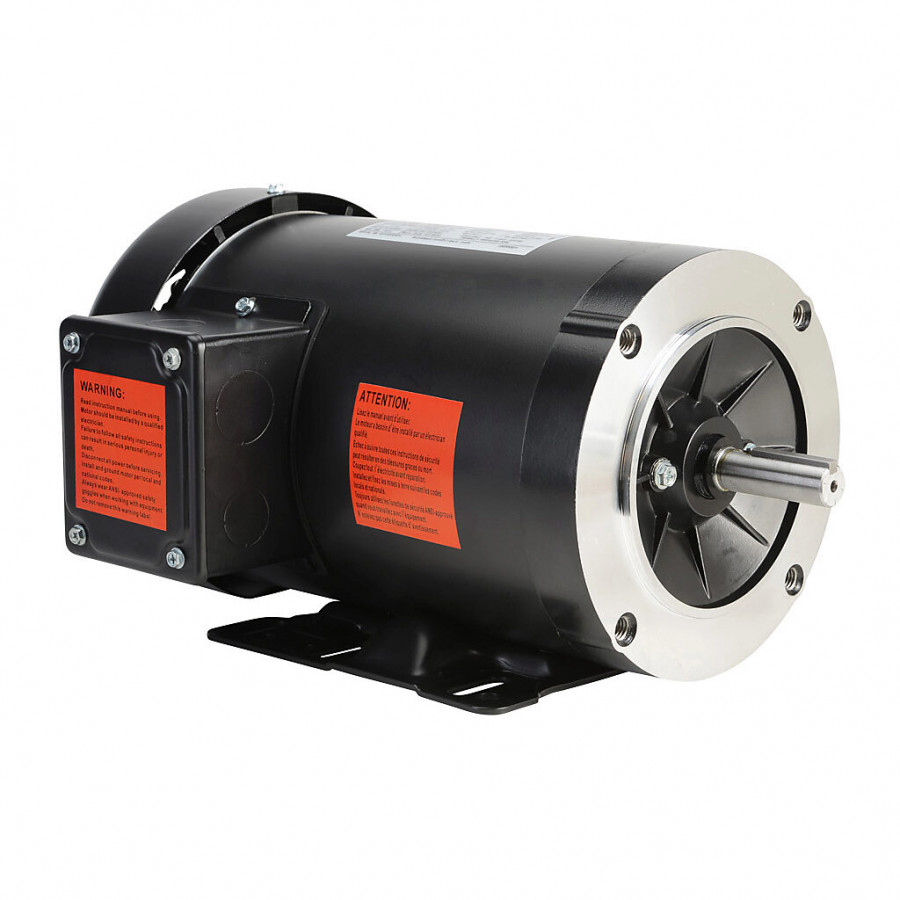

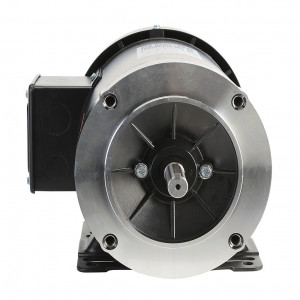

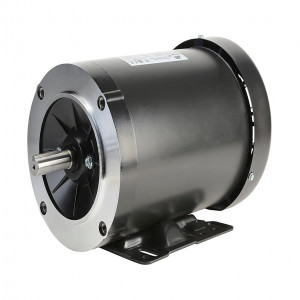

IRONHORSE MTR SERIES PREMIUM EFFICIENCY
Fecha Entrega:
Lunes, 03 de Noviembre de 2025
Precio (no incluye IVA):
$367.5USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Motor |
| Efficiency Group | Premium efficiency |
| Efficiency | 86.5 |
| Voltage Type | AC |
| Motor Type | Induction |
| Motor Application | General purpose and inverter rated |
|---|---|
| Horsepower Rating | 1-1/2hp |
| Number of Phases | 3 |
| Voltage Rating | 208-230/460 VAC |
| Synchronous Speed | 1800rpm |
| Nameplate RPM | 1760rpm |
| Overload Type | None |
| Enclosure Type | TEFC |
| Shaft Type | Round with square key |
| Shaft Diameter | 5/8in |
| Shaft Material | 1045 hot rolled (C-204) steel |
| Motor Frame | 56C/HC |
| Frame Material | Rolled steel |
| Electrically Reversible | Yes |
| Insulation Class | Class F |
| IP Rating | IP43 |
| Constant Torque Rating | 4 |
| Variable Torque Rating | 10 |
| Service Factor | 1.15 (sine), 1.0 (drive) |
| NEMA Design | Design B |
| Junction Box Orientation | F1 |
| Mounting | Rigid base/C-face |
| Mounting Orientation | Horizontal or vertical |
