[3% off $391.00 ] IRONHORSE MTPM SERIES DC PERMANENT MAGNE
$379.27USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

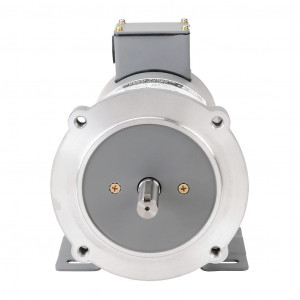

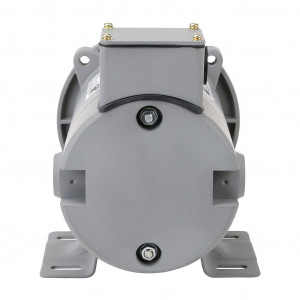

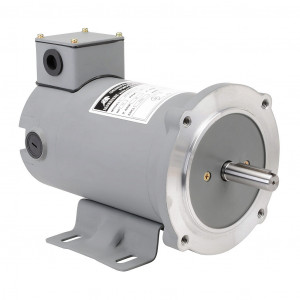

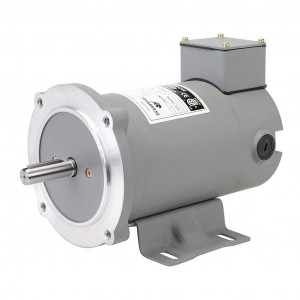

IRONHORSE MTPM SERIES DC PERMANENT MAGNET MOTOR, SCR-PWM RATED, 1/2HP, 90 VDC, 1800RPM, TENV, 56C FRAME, ROLLED STEEL, REMOVABLE BASE/C-FACE MOUNT. REPLACEMENT BRUSHES INCLUDED.
Modelo: MTPM-P50-1L18
Entrega estimada:
Martes, 29 de Abril de 2025
Precio (no incluye IVA):
$379.27USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Motor |
| Performance Level | Standard performance |
| Voltage Type | DC |
| Motor Type | Permanent magnet |
| Motor Application | SCR-PWM rated |
| 4-in-1 | No |
|---|---|
| Horsepower Rating | 1/2hp |
| Voltage Rating | 90 VDC |
| Synchronous Speed | 1800rpm |
| Nameplate RPM | 1800rpm |
| Overload Type | None |
| Enclosure Type | TENV |
| Shaft Type | Round with square key |
| Shaft Diameter | 5/8in |
| Shaft Material | 40 cold rolled heat treated hardness HB2800-320 steel |
| Motor Frame | 56C |
| Frame Material | Rolled steel |
| Electrically Reversible | Yes |
| Insulation Class | Class F |
| IP Rating | IP40 |
| Constant Torque Rating | 20 |
| Service Factor | 1.0 |
| Junction Box Orientation | F3 |
| Mounting | Removable base/C-face |
| Mounting Orientation | Horizontal or vertical |

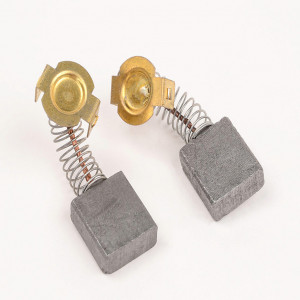

| Includes | Replacement brushes |
| DataSheet | https |
