[3% off $178.00 ] IRONHORSE MTPM SERIES DC PERMANENT MAGNE
$172.66USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

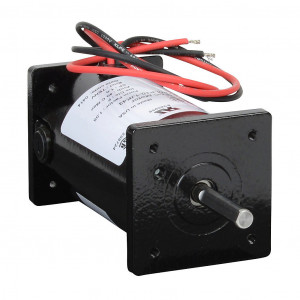

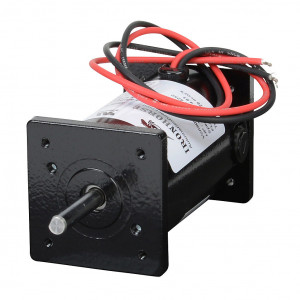

IRONHORSE MTPM SERIES DC PERMANENT MAGNET MOTOR, SCR-PWM RATED, 1/10HP, 12/24 VDC, 1746/4252RPM, TENV, SMALL FRAME, ROLLED STEEL, FLANGE MOUNT.
Modelo: MTPM-P10-1JK43
Entrega estimada:
Martes, 22 De Abril De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$172.66USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Motor |
| Voltage Type | DC |
| Motor Type | Permanent magnet |
| Motor Application | SCR-PWM rated |
| Horsepower Rating | 1/10hp |
| Voltage Rating | 12/24 VDC |
|---|---|
| Synchronous Speed | 1746/4252rpm |
| Nameplate RPM | 1746/4252rpm |
| Overload Type | None |
| Enclosure Type | TENV |
| Shaft Type | Round full flat with keyway |
| Shaft Diameter | 5/16in |
| Shaft Material | 1215 cold rolled steel |
| Motor Frame | Small |
| Frame Material | Rolled steel |
| Electrically Reversible | Yes |
| Insulation Class | Class F |
| IP Rating | IP40 |
| Service Factor | 1.0 |
| Mounting | Flange |
| Mounting Orientation | Horizontal or vertical |
| Additional Information | 18in leads |
