ALLIANCE SENSORS INDUCTIVE LINEAR POSITI
$543.00USD

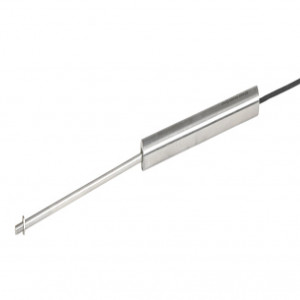

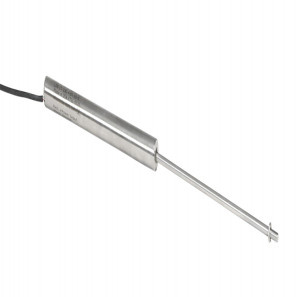

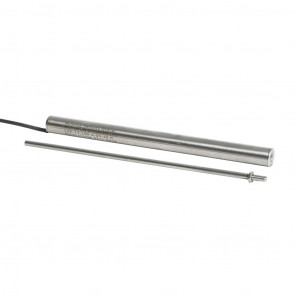

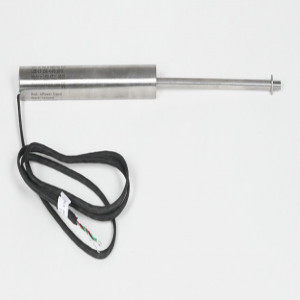

Precio no incluye IVAALLIANCE SENSORS INDUCTIVE LINEAR POSITION SENSOR, FIXED SLIDE, 150MM STROKE, 4MM SHAFT DIAMETER, 0-10 VDC OUTPUT, 12.7MM DIAMETER X 165.1MM BODY, M4 X 0.7 MOUNT, PIGTAIL, 3.2FT/1M CABLE LENGTH.
Marca: ALLIANCE SENSORSModelo: LZE13-150A-00-10S
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Martes, 10 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$543.00USD
Atributos del producto
| Brand | Alliance Sensors |
|---|---|
| Item | Linear position sensor |
| Transducer Type | Inductive |
| Action | Fixed slide |
| Stroke | 150mm |
| Shaft Diameter | 4mm |
| Output | 0-10 VDC |
|---|---|
| Housing Material | Stainless steel |
| Housing Size | 12.7mm diameter x 165.1mm body |
| Operating Voltage | 12-30 VDC |
| Sensor Resolution | 0.025\% of full scale |
| Linearity | +/- 0.15\% |
| Switching Cycles | 250,000,000 cycles |
| Mounting | M4 x 0.7 |
| IP Rating | IP67 |
| Connection | Pigtail |
| Number of Wires | 4 |
| Conductor Size | 28 AWG |
| Cable Length | 3.2ft/1m |
| Jacket Material | PUR |
| Additional Information | Contactless operation |
