ALLIANCE SENSORS INDUCTIVE LINEAR POSITI
$534.00USD

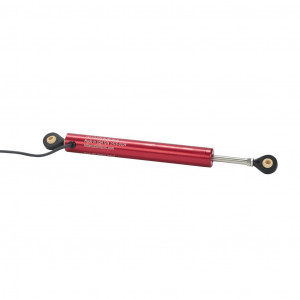

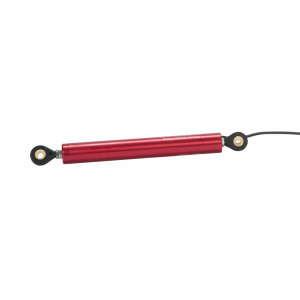

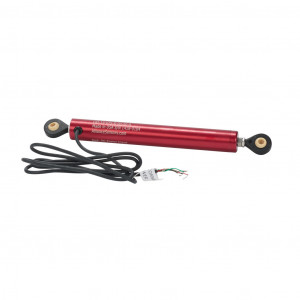

Precio no incluye IVAALLIANCE SENSORS INDUCTIVE LINEAR POSITION SENSOR, SLIDE, 75MM STROKE, 6.4MM SHAFT DIAMETER, 4-20 MA OUTPUT, 19MM DIAMETER X 145.8MM BODY, ROD EYES MOUNT, PIGTAIL, 3.2FT/1M CABLE LENGTH.
Marca: ALLIANCE SENSORSModelo: LRI19-075R-00-20A
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$534.00USD
Atributos del producto
| Brand | Alliance Sensors |
|---|---|
| Item | Linear position sensor |
| Transducer Type | Inductive |
| Action | Slide |
| Stroke | 75mm |
| Shaft Diameter | 6.4mm |
| Output | 4-20 mA |
|---|---|
| Housing Material | Aluminum |
| Housing Size | 19mm diameter x 145.8mm body |
| Operating Voltage | 18-30 VDC |
| Sensor Resolution | 0.025% of full scale |
| Linearity | +/- 0.15% |
| Switching Cycles | 250,000,000 cycles |
| Mounting | Rod eyes |
| IP Rating | IP67 |
| Connection | Pigtail |
| Number of Wires | 4 |
| Conductor Size | 28 AWG |
| Cable Length | 3.2ft/1m |
| Jacket Material | PUR |
| Additional Information | Contactless operation |
