[5% off $972.00 ] FLOWLINE ECHOBEAM FREQUENCY MODULATED CO
$923.4USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

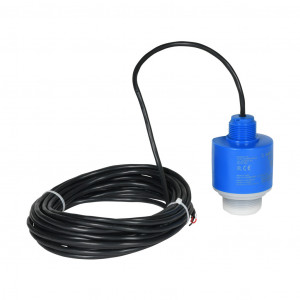

FLOWLINE ECHOBEAM FREQUENCY MODULATED CONTINUOUS WAVE (FMCW) RADAR LIQUID AND BULK SOLIDS LEVEL SENSOR, LIQUID 32.8FT/10M, SOLIDS 16.4FT/5M SENSING RANGE, 4-20 MA, 12-30 VDC OPERATING VOLTAGE, 1-1/2IN MALE NPT PROCESS CONNECTION.
Modelo: LR80-0000
Este producto incluye
Envío gratis
* Aplican restricciones
Entrega estimada:
Martes, 22 De Abril De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$923.4USD
Atributos del producto
| Brand | Flowline |
|---|---|
| Item | Level sensor |
| Series | EchoBeam |
| Sensor Type | Frequency modulated continuous wave (FMCW) radar |
| Media Type | Liquid and bulk solids |
| Mounting | Vertical top |
| Process Temperature | -40 to 176 deg F |
|---|---|
| Sensing Range | Liquid 32.8ft/10m, solids 16.4ft/5m |
| Output | 4-20 mA |
| Operating Voltage | 12-30 VDC |
| Housing Size | 2.87in diameter |
| Housing Material | Polyvinylidene fluoride (PVDF) |
| Housing Rating | NEMA 6P (IP68) |
| Process Connection | 1-1/2in male NPT |
| Electrical Connection | 1in male NPT with 10m/32ft cable |
| Requires | An Android or iOS device with Bluetooth connectivity and LevelTap App (free download from the Google Play Store and Apple App Store) for full sensor configuration |
