LCR-18P-0150-C5-1A

PROSENSE POTENTIOMETER LINEAR POSITION S

$170.00USD

Precio no incluye IVA

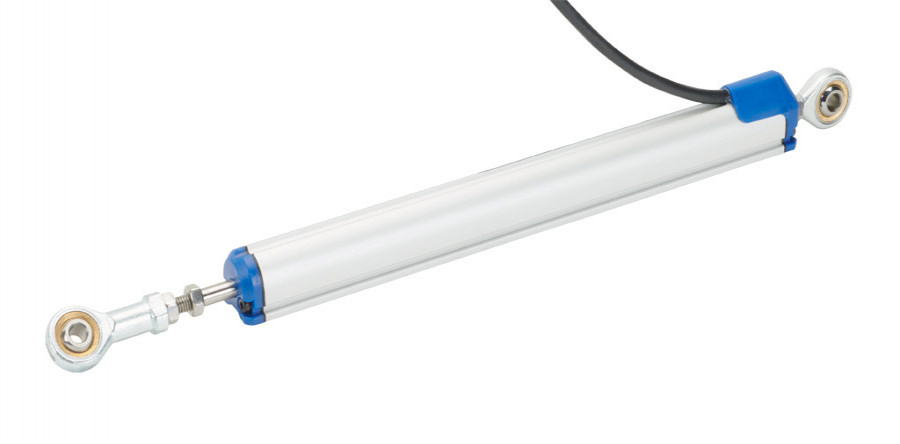

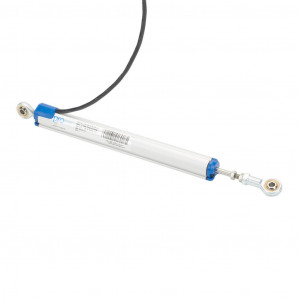

PROSENSE POTENTIOMETER LINEAR POSITION SENSOR, PIVOTING SLIDE, 150MM STROKE, 18MM DIAMETER X 198MM BODY, ROD EYES MOUNT, PIGTAIL, 3.2FT/1M CABLE LENGTH.

Marca: PROSENSE
Modelo: LCR-18P-0150-C5-1A

Documentos:

LCR-18P-0150-C5-1A 2D Drawing

Product Line Brochure

Product Cut Sheet

LCR-18P-0150-C5-1A STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Entrega estimada:

Debug deliveryArray[1]: "Próxima Disponibilidad"

Debug trim(deliveryArray[1]): "Próxima Disponibilidad"

Próxima Disponibilidad

Viernes, 28 de Agosto de 2020

											*** Condición ejecutada: Entró en Próxima Disponibilidad + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$170.00USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	ProSense
Item	Linear position sensor
Transducer Type	Potentiometer
Action	Pivoting slide
Stroke	150mm
Resistance	5k ohm

Head Material	Stainless steel
Housing Material	Anodized aluminum
Housing Size	18mm diameter x 198mm body
Sensor Resolution	Infinite
Linearity	+/- 0.1\%
Switching Cycles	100,000,000 cycles

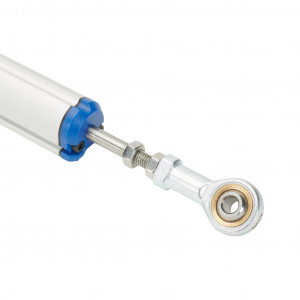

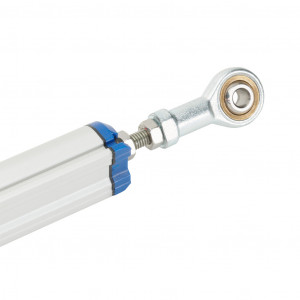

Mounting	Rod eyes
IP Rating	IP65

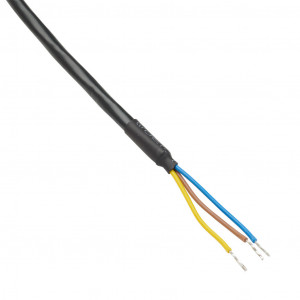

Connection	Pigtail
Number of Wires	4
Cable Length	3.2ft/1m
Jacket Material	PVC
Includes	Pivoting rod eye joint
