[5% off $218.00 ] BUSSMANN MODULAR POWER DISTRIBUTION FUSE
$207.1USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

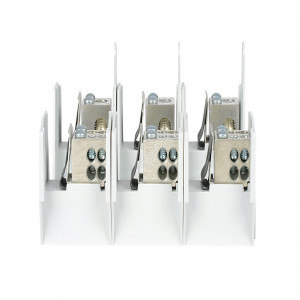

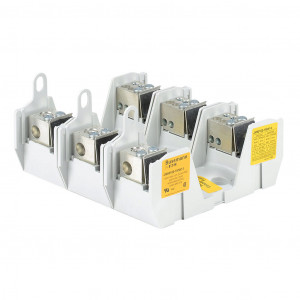

BUSSMANN MODULAR POWER DISTRIBUTION FUSE BLOCK, MULTI-WIRE, ACCEPTS J FUSES, 100A, 600V, 3-POLE, 1 LINE/4 LOAD OPENING(S) PER POLE, BOX LUG, PANEL MOUNT.
Modelo: JM60100-1MW14-3
Entrega estimada:
Viernes, 13 de Junio de 2025
Precio (no incluye IVA):
$207.1USD
Atributos del producto
| Brand | Bussmann |
|---|---|
| Item | Power distribution fuse block |
| Modular | Yes |
| Blown Fuse Indicator | No |
| Multi-Wire | Yes |
| Accepts Fuse Class | J |
| Amperage Rating | 100A |
|---|---|
| Voltage Rating | 600V |
| Number of Poles | 3 |
| Openings Per Pole | 1 line/4 load |

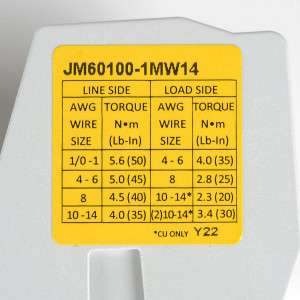

| Line Side Conductor Size | 14-1/0 AWG copper or aluminum |
| Load Side Conductor Size | (4) 14-4 AWG copper or (4) 8-4 AWG aluminum |
| Conductor Connection Type | Box lug |
| SCCR Rating | 200kA SCCR |
| Fuse Connection Type | Clip with reinforced spring |
| Mounting | Panel |
| Additional Information | Covers sold separately |
