H802185-1

HELUKABEL HELUKAT FLEXIBLE PROFINET TYPE

$6.37USD

Precio no incluye IVA

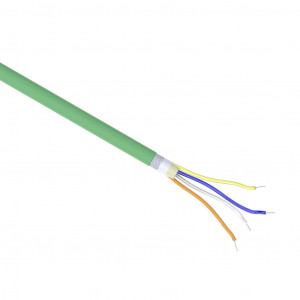

HELUKABEL HELUKAT FLEXIBLE PROFINET TYPE B CABLE, OVERALL SHIELDED, 1 STAR QUAD, 22 AWG, 7-STRANDED, TINNED COPPER, FRNC CONDUCTOR INSULATION MATERIAL, FRNC JACKET, GREEN, CUT TO LENGTH.

Modelo: H802185-1

Documentos:

Product Line Brochure

Product Cut Sheet

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Fecha Entrega:

Debug Url: "https://proyectos.sdindustrial.com.mx/apps/tienda/StockAutomation/fechaentrega.php?vcModelo=H802185-1"

Debug Cantidad: "2350"

Debug Mensaje: "Disponible"

Debug FechaEmbarque: "Lunes, 15 de Diciembre de 2025"

Debug Fabricante: "AutomationDirect"

Debug idFabricante: "508"

Debug idProveedor: "106"

Lunes, 15 de Diciembre de 2025

											*** Condición ejecutada: Entró en Disponible + AutomationDirect ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$6.37USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	Helukabel
Item	Cable
Series	HELUKAT
Protocol	Fieldbus and Cat5e Ethernet
Wire/Cable Type	Profinet Type B
UL Wire/Cable Type	CMG and PLTC

Applicable Standards	Halogen free
Application	Data
Flexibility	Flexible
Voltage Rating	60V
Conductors	1 star quad
Conductor Size	22 AWG
Conductor Stranding	7-stranded
Conductor Material	Tinned copper
Conductor Insulation Material	FRNC
Conductor Insulation Color	Pair 1
Shielding	Overall aluminized polyester foil and tinned copper braid
Jacket Material	Flame-Retardent-Non-Corrosive (FRNC)
Jacket color	Green
Nominal Overall Cable Diameter	0.256in
Bulk Length	Cut to length
Package Type	20 to 99ft = Coil 100 to 595ft =14 x 7in Reel 596 to 850ft =14 x 10in Reel 851 to 1305ft = 16 x 10in Reel 1306 to 1820ft = 18 x 10in Reel 1821 to 2370ft = 18 x 13in Reel 2371 to 2500ft = 24 x 17in Wooden Reel
