[16% off $626.00 ] IRONHORSE GSD8 SERIES DC DIGITAL DRIVE,
$525.84USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

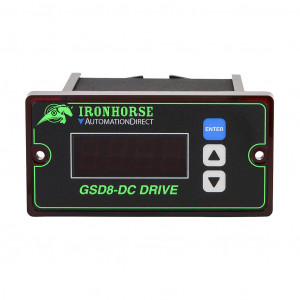

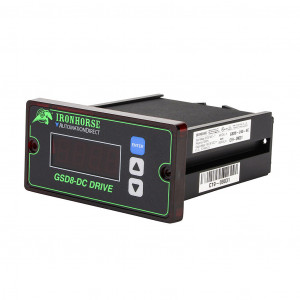

IRONHORSE GSD8 SERIES DC DIGITAL DRIVE, 120/240 VAC, 1-PHASE, 1/2HP AT 90 VDC AND 1HP AT 180 VDC, 5A, NEMA 4X, 1/8 DIN MOUNT, FIELD-INSTALL REVERSE, HIGH-SPEED PULSE INPUT, SCR OUTPUT.
Modelo: GSD8-240-5C
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$525.84USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Drive |
| Controller Type | Digital |
| Series | GSD8 |
| Voltage Type | DC |
| Number of Input Phases | 1 |
| Nominal Input Voltage | 120/240 VAC |
|---|---|
| Nominal Output Voltage | Output up to 90/180 VDC |
| Horsepower by Voltage | 1/2hp at 90 VDC and 1hp at 180 VDC |
| Amperage Rating | 5A |
| Variable Torque Amperage Rating | 150 mA - 5A |
| Control Mode | DC |
| Safe Torque Off (STO) | No |
| Temperature Rating | -10 to 45 deg C |
| Enclosure Type | NEMA 4X |
| IP Rating | IP67 |
| Mounting | 1/8 DIN |
| Input Signal | High-speed pulse input |
| Input Voltage Signal Range | 0-5 VDC, 0-24 VDC |
| Maximum Switching Frequency | 800 Hz |
| Relay Configuration | (1) Form C (SPDT) relay |
| On/Off Switch | No |
| Shunt Field Supply | No |
| Output Type | SCR output |
| Reverse Capability | Field-install |
| Output Frequency Range | DC |
| Connector Type | Screw terminals |
| SCCR Rating | SCCR exempt |
| For Use With | Permanent magnet DC, shunt wound DC and universal motors |
| Includes | Factory-installed character display and mounting hardware |
