[16% off $1333.00 ] IRONHORSE GSD8 SERIES DC DIGITAL DRIVE,
$1119.72USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

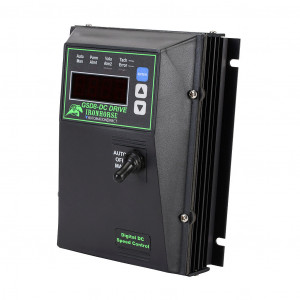

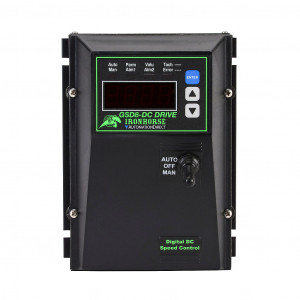

IRONHORSE GSD8 SERIES DC DIGITAL DRIVE, 120/240 VAC, 1-PHASE, 1HP AT 90 VDC AND 2HP AT 180 VDC, 10A, NEMA 4X, WALL MOUNT, FIELD-INSTALL REVERSE, CURRENT OR POTENTIOMETER INPUT, SCR AND 4-20 MA CONTROL CURRENT OUTPUT.
Modelo: GSD8-240-10N4X-A
Este producto incluye
Envío gratis
* Aplican restricciones
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Jueves, 12 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$1119.72USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Drive |
| Controller Type | Digital |
| Series | GSD8 |
| Voltage Type | DC |
| Number of Input Phases | 1 |
| Nominal Input Voltage | 120/240 VAC |
|---|---|
| Nominal Output Voltage | Output up to 90/180 VDC |
| Horsepower by Voltage | 1hp at 90 VDC and 2hp at 180 VDC |
| Amperage Rating | 10A |
| Variable Torque Amperage Rating | 150 mA - 10A |
| Control Mode | DC |
| Safe Torque Off (STO) | No |
| Temperature Rating | -10 to 45 deg C |
| Enclosure Type | NEMA 4X |
| IP Rating | IP67 |
| Mounting | Wall |
| Input Signal | Current or potentiometer input |
| Input Voltage Signal Range | 0-5 VDC, 0-24 VDC |
| Maximum Switching Frequency | 10 kHz |
| Relay Configuration | (1) Form C (SPDT) relay |
| On/Off Switch | Yes |
| Shunt Field Supply | No |
| Output Type | SCR and 4-20 mA control current output |
| Reverse Capability | Field-install |
| Output Frequency Range | DC |
| Connector Type | Screw terminals |
| SCCR Rating | SCCR exempt |
| For Use With | Permanent magnet DC, shunt wound DC and universal motors |
| Includes | Factory-installed character display and auto/off/manual selector switch |
