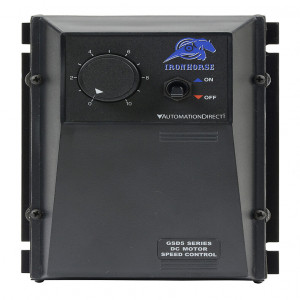

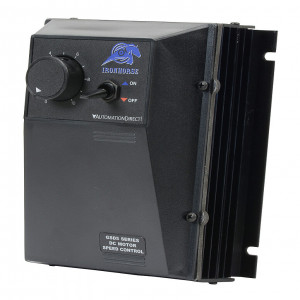

[3% off $425.00 ] IRONHORSE GSD5 SERIES DC GENERAL PURPOSE
$412.25USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA
IRONHORSE GSD5 SERIES DC GENERAL PURPOSE DRIVE, 120/240 VAC, 1-PHASE, 1/8 TO 1HP AT 90 VDC AND 1/4 TO 2HP AT 180 VDC, 10.8A, NEMA 4/12, WALL MOUNT, FIELD-INSTALL REVERSE, POTENTIOMETER INPUT, SCR OUTPUT.
Fecha Entrega:
Miércoles, 12 De Noviembre De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$412.25USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Drive |
| Controller Type | General purpose |
| Series | GSD5 |
| Voltage Type | DC |
| Number of Input Phases | 1 |
| Nominal Input Voltage | 120/240 VAC |
|---|---|
| Nominal Output Voltage | Output up to 90/180 VDC |
| Horsepower by Voltage | 1/8 to 1hp at 90 VDC and 1/4 to 2hp at 180 VDC |
| Amperage Rating | 10.8A |
| Variable Torque Amperage Rating | 150 mA - 10.8A |
| Control Mode | DC |
| Safe Torque Off (STO) | No |
| Temperature Rating | -10 to 45 deg C |
| Enclosure Type | NEMA 4/12 |
| IP Rating | IP65 |
| Mounting | Wall |
| Input Signal | Potentiometer input |
| On/Off Switch | Yes |
| Shunt Field Supply | Yes |
| Output Type | SCR output |
| Reverse Capability | Field-install |
| Output Frequency Range | DC |
| Connector Type | Screw terminals |
| SCCR Rating | SCCR exempt |
| For Use With | Permanent magnet DC, shunt wound DC and universal motors |
| Includes | Factory-installed speed potentiometer with knob and 0-100% faceplate |
| DataSheet | https |
