[16% off $366.00 ] IRONHORSE GSD1 SERIES DC FULL-FEATURED D
$307.44USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

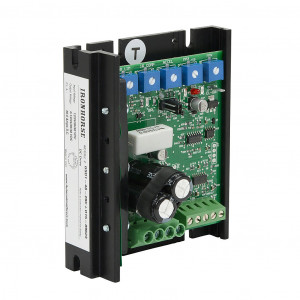

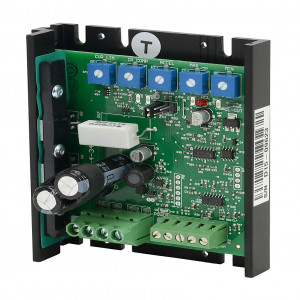

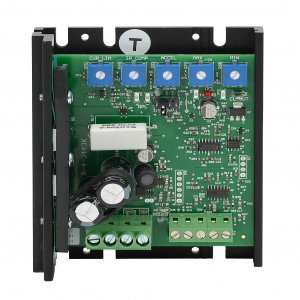

IRONHORSE GSD1 SERIES DC FULL-FEATURED DRIVE, 12-48 VDC, 1-PHASE, 1/50 TO 1/4HP AT 12 VDC AND 1/12 TO 1HP AT 48 VDC, 20A, OPEN FRAME, PANEL MOUNT, FIELD-INSTALL REVERSE, POTENTIOMETER INPUT, PWM OUTPUT.
Modelo: GSD1-48-20C
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$307.44USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Drive |
| Controller Type | Full-featured |
| Series | GSD1 |
| Voltage Type | DC |
| Number of Input Phases | 1 |
| Nominal Input Voltage | 12-48 VDC |
|---|---|
| Nominal Output Voltage | Output up to input voltage |
| Horsepower by Voltage | 1/50 to 1/4hp at 12 VDC and 1/12 to 1hp at 48 VDC |
| Amperage Rating | 20A |
| Variable Torque Amperage Rating | 20A |
| Control Mode | DC |
| Safe Torque Off (STO) | No |
| Temperature Rating | -30 to 65 deg C |
| Enclosure Type | Open frame |
| IP Rating | IP00 |
| Mounting | Panel |
| Input Signal | Potentiometer input |
| On/Off Switch | No |
| Shunt Field Supply | No |
| Output Type | PWM output |
| Reverse Capability | Field-install |
| Carrier Frequency Range | 18 kHz |
| Output Frequency Range | DC |
| Connector Type | Screw terminals |
| SCCR Rating | SCCR exempt |
| For Use With | Permanent magnet DC and universal motors |
| Includes | Speed potentiometer with knob and 0-100% faceplate |
| DataSheet | https |
