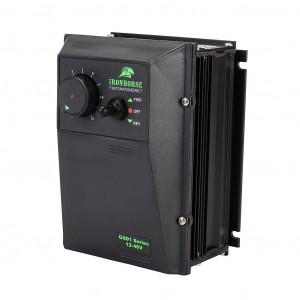

[16% off $746.00 ] IRONHORSE GSD1 SERIES DC REVERSING DRIVE
$626.64USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA
IRONHORSE GSD1 SERIES DC REVERSING DRIVE, 12/24 VDC, 1-PHASE, 1/50HP AT 12 VDC AND 5/16HP AT 24 VDC, 15A, NEMA 4X, WALL MOUNT, BUILT-IN REVERSE, POTENTIOMETER INPUT, PWM OUTPUT.
Modelo: GSD1-24-15N4X-R
Este producto incluye
Envío gratis
* Aplican restricciones
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$626.64USD
Atributos del producto
| Brand | IronHorse |
|---|---|
| Item | Drive |
| Controller Type | Reversing |
| Series | GSD1 |
| Voltage Type | DC |
| Number of Input Phases | 1 |
| Nominal Input Voltage | 12/24 VDC |
|---|---|
| Nominal Output Voltage | Output up to 12/24 VDC |
| Horsepower by Voltage | 1/50hp at 12 VDC and 5/16hp at 24 VDC |
| Amperage Rating | 15A |
| Variable Torque Amperage Rating | 500 mA - 15A |
| Control Mode | DC |
| Safe Torque Off (STO) | No |
| Temperature Rating | -10 to 40 deg C |
| Enclosure Type | NEMA 4X |
| IP Rating | IP67 |
| Mounting | Wall |
| Input Signal | Potentiometer input |
| Relay Configuration | (1) Form C (SPDT) relay |
| On/Off Switch | No |
| Shunt Field Supply | No |
| Output Type | PWM output |
| Reverse Capability | Built-in |
| Output Frequency Range | DC |
| Connector Type | Screw terminals |
| SCCR Rating | SCCR exempt |
| For Use With | Permanent magnet DC, shunt wound DC and universal motors |
| Includes | Mounting hardware |
