[16% off $2622.00 ] DURAPULSE GS4 SERIES AC HIGH-PERFORMANCE
$2202.48USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

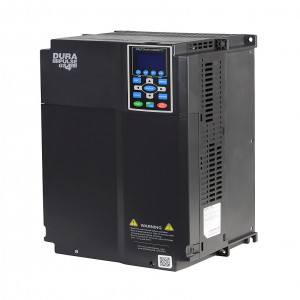

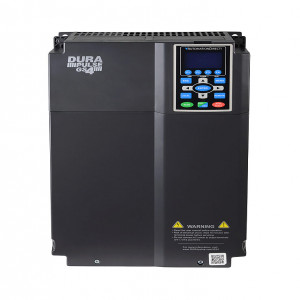

DURAPULSE GS4 SERIES AC HIGH-PERFORMANCE DRIVE, NEMA 1, 460 VAC, 30HP WITH 3-PHASE INPUT, SVC OR V/HZ MODE, C FRAME, RS-485, MODBUS AND BACNET, 100KA SCCR. OPTIONAL ETHERNET/IP AND MODBUS TCP CARDS AVAILABLE.
Modelo: GS4-4030
Documentos:
Este producto incluye
Envío gratis
* Aplican restricciones
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$2202.48USD
Atributos del producto
| Brand | DURApulse |
|---|---|
| Item | Drive |
| Controller Type | High-performance |
| Series | GS4 |
| Voltage Type | AC |
| Nominal Input Voltage | 460 VAC |
| Nominal Output Voltage | 460 VAC |
|---|---|
| Number of Input Phases | 3 |
| Number of Output Phases | 3 |
| Horsepower By Phase | 30hp with 3-phase input |
| Amperage Rating | 43A |
| Variable Torque Amperage Rating | 45A |
| Control Mode | SVC or V/Hz |
| Safe Torque Off (STO) | Yes |
| Temperature Rating | -10 to 50 deg C |
| Enclosure Type | NEMA 1 |
| IP Rating | IP20 |

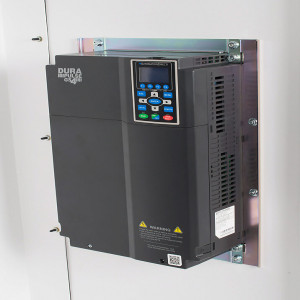

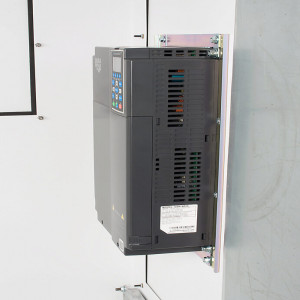

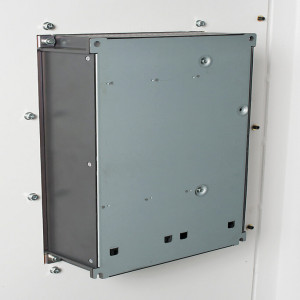

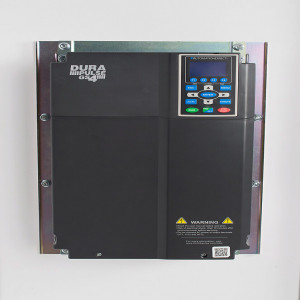

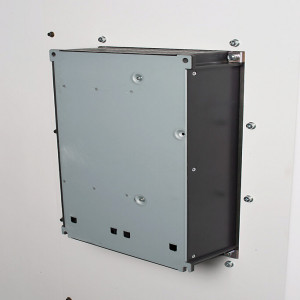

| Mounting | Panel or wall |
| Frame Size | C |
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Input Signal | 4-20 mA, voltage or potentiometer input |
| Output Type | PWM output |
| Reverse Capability | Built-in |
| Internally Bypassed | No |
| Carrier Frequency Range | 2-15 kHz |
| Output Frequency Range | 0.1-600 Hz |
| Connector Type | Screw terminals |
| SCCR Rating | 100kA SCCR |
| For Use With | 3-phase induction motors |
| Additional Information | Optional EtherNet/IP and Modbus TCP cards available |
| DataSheet | https |
