[3% off $77.00 ] DURAPULSE GS30 SERIES ANALOG COMBO MODUL
$74.69USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

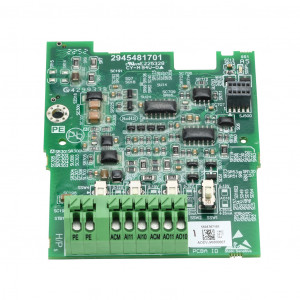

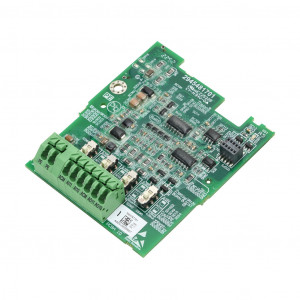

DURAPULSE GS30 SERIES ANALOG COMBO MODULE, INPUT: 2-CHANNEL, CURRENT/VOLTAGE, 0-20 MA AND 4-20 MA, 0-10 VDC, OUTPUT: 2-CHANNEL, CURRENT/VOLTAGE, 0-20 MA AND 4-20 MA, 0-10 VDC.
Fecha Entrega:
Precio (no incluye IVA):
$74.69USD
Atributos del producto
| Brand | DURApulse |
|---|---|
| Item | Combo module |
| I/O Module Type | Analog |
| Series | GS30 |
| Number Of Input Channels | 2 |
| Input Signal Type(s) | Current/voltage |
| Analog Input Type | Sinking |
|---|---|
| Number of Non-Isolated Input Commons | 1 |
| Input Resolution | 12-bit |
| Input Current Signal Range | 0-20 mA and 4-20 mA |
| Input Voltage Signal Range | 0-10 VDC |
| Number Of Output Channels | 2 |
| Output Signal Type | Current/voltage |
| Analog Output Type | Sourcing |
| Number of Non-Isolated Output Commons | 1 |
| Output Resolution | 12-bit |
| Output Current Signal Range | 0-20 mA and 4-20 mA |
| Output Voltage Signal Range | 0-10 VDC |
| External Power Requirement | 24 VDC |
| For Use With | GS30 series AC drives |
| Includes | Spring clamp terminals |
