[14% off $33.00 ] NITRA MANUAL VALVE, 2-PORT (3-WAY), 2-PO
$28.38USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

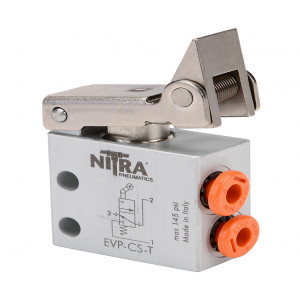

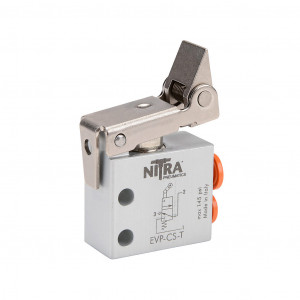

NITRA MANUAL VALVE, 2-PORT (3-WAY), 2-POSITION, N.C., METAL PLUNGER WITH ONE-WAY METAL ROLLER, SPRING RETURN, SIDE PORTS, (1) 5/32IN (4MM) PTC TUBING INLET(S), (1) 5/32IN (4MM) PTC TUBING OUTLET(S), (1) VENT HOLE EXHAUST(S), CV=0.13.
Modelo: EVP-CS-T
Viernes, 06 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Jueves, 12 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$28.38USD
Atributos del producto
| Brand | NITRA |
|---|---|
| Item | Valve |
| Working Fluid | Pneumatic |
| Valve Type | Manual directional control |
| Port Quantity | 2-port (3-way) |
| Number Of Positions | 2 |
| Valve Configuration | N.C. |
|---|---|
| Operator Type | Metal plunger with one-way metal roller |
| Action | Spring return |
| Body Material | Aluminum |
| Inlet Port | (1) 5/32in (4mm) push-to-connect tubing |
| Outlet Port | (1) 5/32in (4mm) push-to-connect tubing |
| Exhaust Port | (1) vent hole |
| Port Orientation | Side |
| Stackable | No |
| Flow Coefficient | 0.13 |
| Maximum Operating Pressure | 145 psi (10 bar) |
| Minimum Operating Pressure | 7 psi (0.5 bar) |
| Form Factor | Standard |
