[18% off $87.00 ] LEADSHINE DC MICROSTEPPING STEPPER DRIVE
$71.34USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

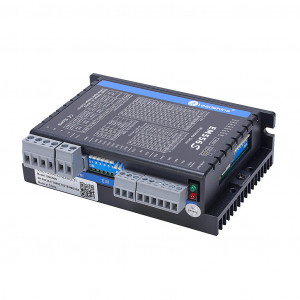

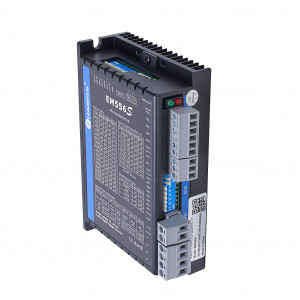

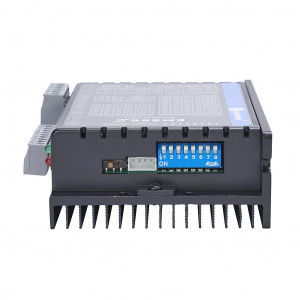

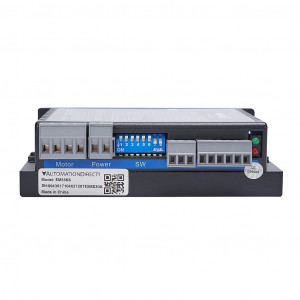

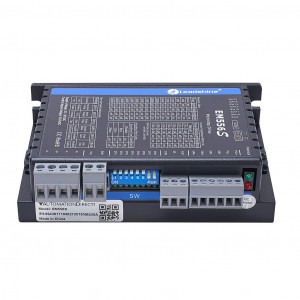

LEADSHINE DC MICROSTEPPING STEPPER DRIVE, 5.6A PER PHASE, 2-PHASE OUTPUT, 24-48 VDC, BIPOLAR, POSITION MODE, 200 TO 25600 STEPS PER REVOLUTION.
Modelo: EM556S
Viernes, 14 de Febrero de 2025
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$71.34USD
Atributos del producto
| Brand | Leadshine |
|---|---|
| Item | Stepper drive |
| Controller Type | Microstepping |
| Voltage Type | DC |
| Amperage Rating | 5.6A per phase |
| Number of Output Phases | 2 |
| Nominal Input Voltage | 24-48 VDC |
|---|---|
| Winding Type Control | Bipolar |
| Output Type | MOSFET, dual H-bridge and 4-quadrant output |
| Steps per Revolution | 200 to 25600 |
| Temperature Rating | 0 to 65 deg C |
| Enclosure Type | Enclosed |
| IP Rating | IP20 |
| Mounting | Panel |
| Control Mode | Position |
| Command Signal(s) |
|
| Number of Discrete Input Points | 1 |
| Discrete Input Type | Sinking/sourcing |
| Number of Discrete Output Points | 2 |
| Discrete Output Type | Sinking/sourcing |
| Tuning Mode | Pre-tuned or optional configuration software |
| Idle Current Reduction | Yes |
| Drive Features | Self-test, anti-resonance (electronic damping), auto-tuning, 5/24 VDC input selector switch, command signal filtering, motor shaft lock and brake output |
| Protection Type(s) |
|
| Configuration | Rotary dial, dipswitches, jumpers or optional configuration software |
| Additional Information | Optional 1.4.4-0409505-B3 programming cable available for software configuration |
