DWP-2M-4A-RL2

LIKA ELECTRONIC DWP SERIES ANALOG LINEAR

$469.00USD

Precio no incluye IVA

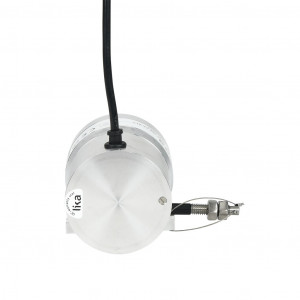

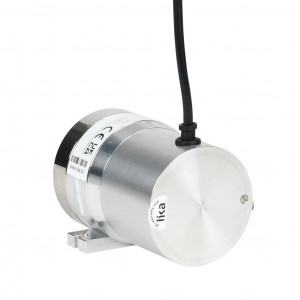

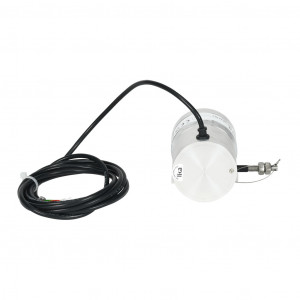

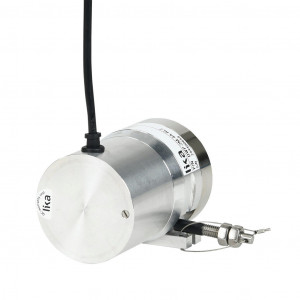

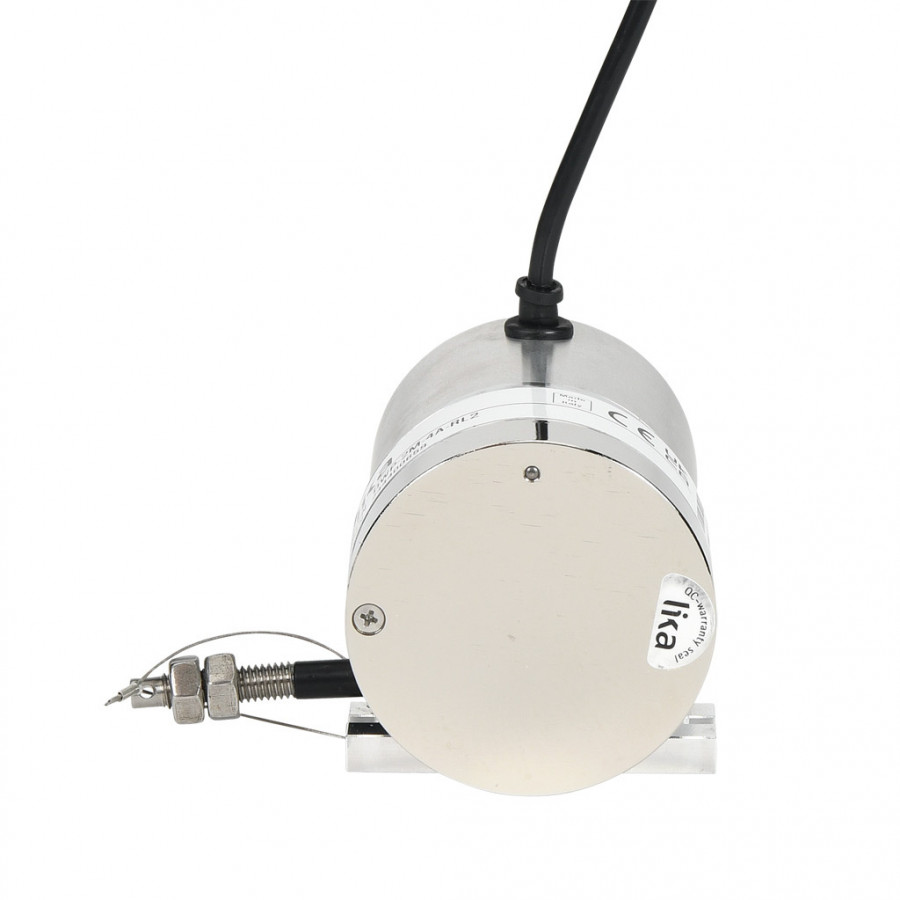

LIKA ELECTRONIC DWP SERIES ANALOG LINEAR DRAW WIRE ENCODER, 10-30 VDC, 4-20 MA OUTPUT, MEDIUM DUTY, POTENTIOMETER, 6.5FT/2M DRAW WIRE, IP64, 6.5FT/2M CABLE LENGTH, RADIAL EXIT, PIGTAIL.

Marca: LIKA ELECTRONIC
Modelo: DWP-2M-4A-RL2

Documentos:

DWP-2M-4A-RL2 2D Drawing

EMI Mitigation Techniques

Product Line Brochure

Data Sheet

User Manual

Product Cut Sheet

DWP-2M-4A-RL2 STP 3D Model

Technical Specifications

ENVIO GRATIS en compras mayores a $650.00 USD.

1 AÑO de Garantía SDI

Entrega estimada:

Debug deliveryArray[1]: "Disponible"

Debug trim(deliveryArray[1]): "Disponible"

Miércoles, 23 De Julio De 2025

* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.

											*** Condición ejecutada: Entró en else ***
											*** ocultaCompra:  ***

Precio (no incluye IVA):

$469.00USD

Cantidad:

Atributos Arriba

Atributos del producto

Brand	Lika Electronic
Item	Draw wire encoder
Series	DWP
Feedback Type	Analog
Encoder Type	Linear
Voltage Rating	10-30 VDC

Encoder Output Type	4-20 mA
Duty Rating	Medium duty
Encoder Resolution	Potentiometer
Draw Wire Length	6.5ft/2m
Speed Rating	1m/sec
Flange Mount	No
Housing Material	Aluminum
IP Rating	IP64
Protection Type(s)	short circuit (between each output and common)
Cable Length	6.5ft/2m
Cable Diameter Size	6mm
Wire Size	24 AWG
Exit Orientation	Radial
Connector Type	Pigtail
