[16% off $1047.00 ] FLOWLINE ECHOPOD ULTRASONIC LIQUID LEVEL
$879.48USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

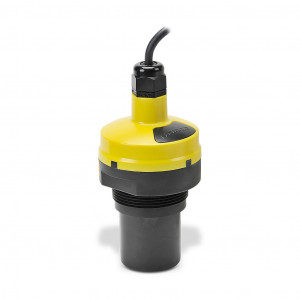

FLOWLINE ECHOPOD ULTRASONIC LIQUID LEVEL SENSOR, 18FT (5.5M) SENSING RANGE, 4-20 MA OR (4) SPST RELAYS, N.O./N.C. SELECTABLE, 14-28 VDC OPERATING VOLTAGE, 2IN MALE NPT PROCESS CONNECTION.
Modelo: DL34-00
Este producto incluye
Envío gratis
* Aplican restricciones
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$879.48USD
Atributos del producto
| Brand | Flowline |
|---|---|
| Series | EchoPod |
| Item | Level sensor |
| Sensor Type | Ultrasonic |
| Media Type | Liquid |
| Sensing Range | 18ft (5.5m) |
| Output | 4-20 mA and (4) SPST relays, N.O./N.C. selectable |
|---|---|
| Operating Voltage | 14-28 VDC |
| Housing Rating | NEMA 6P |
| Process Connection | 2in male NPT |
| Electrical Connection | 48in integral 9-conductor shielded cable |
| Includes | Mounting gasket |
| Requires | An LI99-1001 Fob USB adapter (purchased separately) and WEBCAL software (free download from the AutomationDirect Web site) are required for sensor configuration and firmware updates |
| DataSheet | https |
