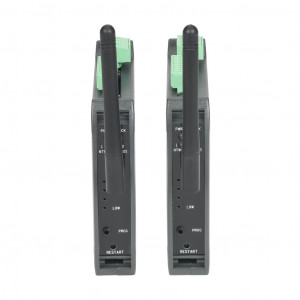

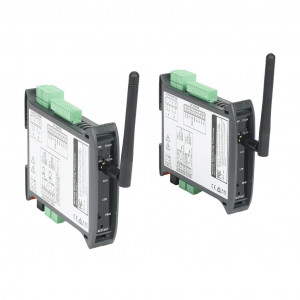

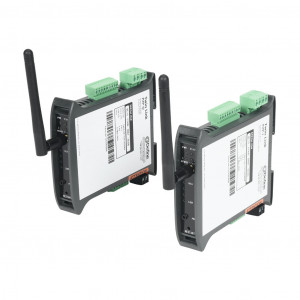

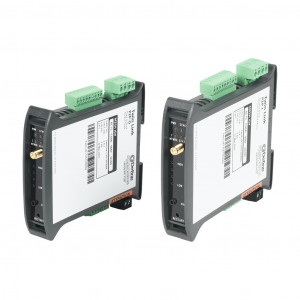

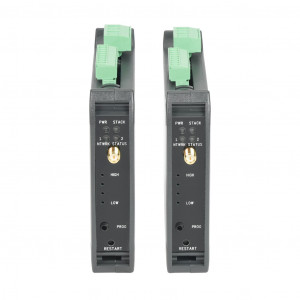

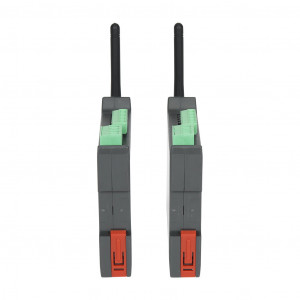

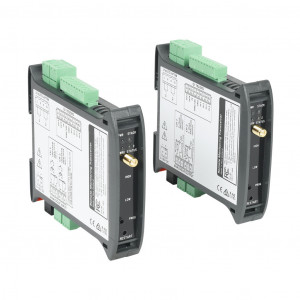

DEFINE INSTRUMENTS TWIN LINK SERIES WIRE
$825.00USD
Precio no incluye IVADEFINE INSTRUMENTS TWIN LINK SERIES WIRELESS SIGNAL TRANSMITTER/RECEIVER, ISOLATED, INPUT: 2-CHANNEL, CURRENT/BIPOLAR VOLTAGE/FREQ/POTENTIOMETER/THERMOCOUPLE/RTD, DEG F OR DEG C, OUTPUT: 2-CHANNEL, LOOP POWERED CURRENT, ZIGBEE: 2.4 GHZ, 9-36 VDC OPERATING VOLTAGE.
Marca: N/DModelo: DEFINE-TWIN-LINK
Este producto incluye
Envío gratis
* Aplican restricciones
Entrega estimada:
Miércoles, 23 De Julio De 2025
* Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$825.00USD
Atributos del producto
| Brand | Define Instruments |
|---|---|
| Item | Wireless signal transmitter/receiver |
| Series | Twin Link |
| Isolation | Isolated |
| Field Configurable | Yes |
| Number of General Purpose Input Points | 2 |
| Number of Discrete Input Points | 4 |
|---|---|
| Nominal Input Voltage | 1.4-30 VDC |
| Discrete Input Type | Sinking/sourcing |
| Number of Non-Isolated Discrete Input Commons | 1 |
| Number of Points per Discrete Input Common | 4 |
| Number Of Input Channels | 2 |
| Input | Current/bipolar voltage/frequency/potentiometer/thermocouple/RTD |
| Input Current Signal Range | 0-20 mA and 4-20 mA |
| Input Frequency Signal Range | 0–2500 Hz |
| Input Potentiometer Resistance | 0-10k ohm |
| Input RTD Signal Types | Pt100 and Pt1000 |
| Input Thermocouple Signal Type | J, K, B, E, N, R, S, T |
| Input Voltage Signal Range | +/- 200 mVDC, -200 mVDC-1 VDC, 0-10 VDC and 0-18 VDC |
| Programmable Temperature Range | Deg F or deg C |
| Number of Discrete Output Points | 4 |
| Nominal Output Voltage | 30 VDC |
| Discrete Output Type | Sinking/sourcing/relay |
| Relay Configuration | (2) Form A (SPST) relays |
| Load Current | 5A/point |
| Number of Non-Isolated Discrete Output Commons | 1 |
| Number of Points per Discrete Output Common | 2 |
| Number Of Output Channels | 2 |
| Output | Loop powered current |
| Output Current Signal Range | 4-20 mA and 20-4 mA |
| Communication Port and Connection Type(s) |
|
| Port Speed(s) |
|
| Frequency Bands | ZigBee |
| Operating Voltage | 9-36 VDC |
| Housing Material | Plastic |
| IP Rating | IP20 |
| Mounting | 35mm DIN rail |
| Electrical Connection | Screw terminals |
| Requires | DEFINE-BRIDGE-KEY fob USB adapter and DEFINE-TOOLBOX-SW configuration software (for changing default configurations) |
| Additional Information | Use STRIDE SE-ANT250 dome antenna for installation in metal enclosures |
