[2% off $162.00 ] MICRO DETECTORS CAPACITIVE PROXIMITY SEN
$158.76USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

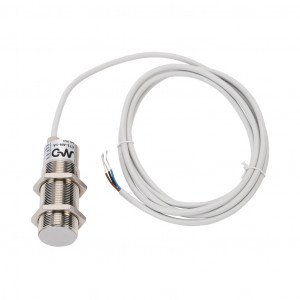

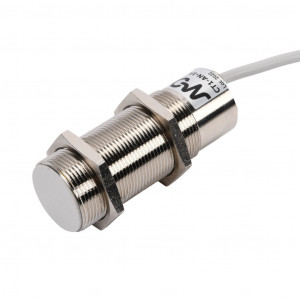

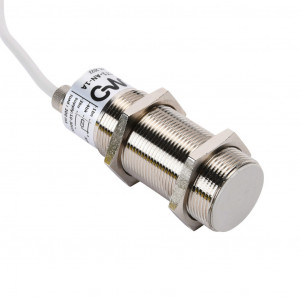

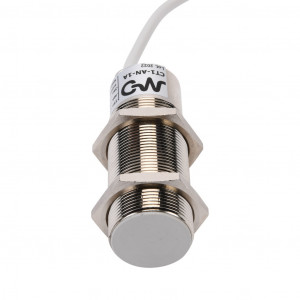

MICRO DETECTORS CAPACITIVE PROXIMITY SENSOR, TUBULAR, 30MM DIAMETER X 71MM BODY, NICKEL-PLATED BRASS HOUSING, NPN, N.O. OUTPUT, 15MM SENSING DISTANCE, FLUSH, 100 HZ SWITCHING FREQUENCY, IP65, PIGTAIL.
Fecha Entrega:
Precio (no incluye IVA):
$158.76USD
Atributos del producto
| Item | Proximity sensor |
|---|---|
| Sensor Type | Capacitive |
| Shape | Tubular |
| Housing Size | 30mm diameter x 71mm body |
| Housing Material | Nickel-plated brass |
| Barrel Type | Threaded |
| Adjustable | Yes |
|---|---|
| Number of Wires | 3 |
| Switching Output | NPN |
| Operation Mode | N.O. output |
| Sensing Distance | 15mm |
| Mounting Type | Flush |
| IO-Link Compatible | No |
| Switching Frequency | 100 Hz |
| Operating Voltage | 10-30 VDC |
| IP Rating | IP65 |
| Connection | Pigtail |
| Conductor Size | 22 AWG |
| Cable Length | 6.5ft/2m |
| Includes | Mounting hardware |
| DataSheet | https |
