[5% off $126.00 ] CLICK PLUS DISCRETE/ANALOG COMBO MODULE,
$119.7USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

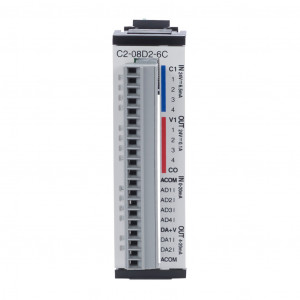

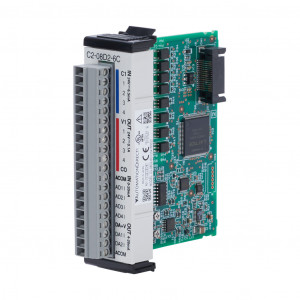

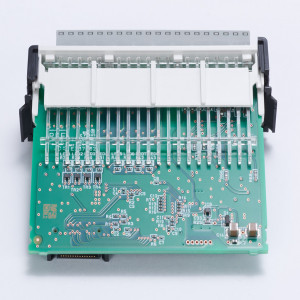

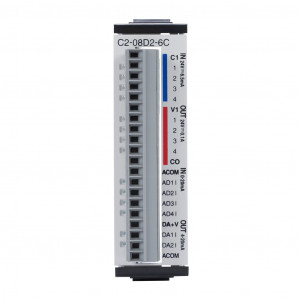

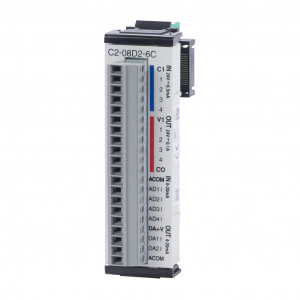

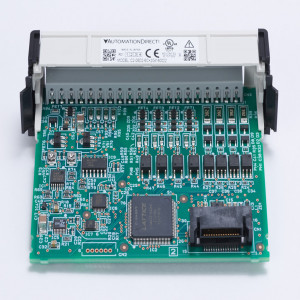

CLICK PLUS DISCRETE/ANALOG COMBO MODULE, ANALOG INPUT: 4-CHANNEL, CURRENT, ANALOG OUTPUT: 2-CHANNEL, CURRENT, DISCRETE INPUT: 4-POINT, SINKING/SOURCING, DISCRETE OUTPUT: 4-POINT, SOURCING.
Modelo: C2-08D2-6C
Jueves, 05 de Diciembre de 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Lunes, 09 De Diciembre De 2024
*Sujeto a cambio sin previo aviso de acuerdo a disponibilidad con fabricante.
Precio (no incluye IVA):
$119.7USD
Atributos del producto
| Brand | CLICK PLUS |
|---|---|
| Item | Combo module |
| I/O Module Type | Discrete/analog |
| Number of Analog Input Channels | 4 |
| Analog Input Signal Type | Current |
| Number of Non-Isolated Analog Input Commons | 1 |
| Number of Points per Analog Input Common | 4 |
|---|---|
| Input Resolution | 12-bit |
| Input Current Signal Range | 0-20 mA |
| Number of Analog Output Channels | 2 |
| Analog Output Signal Type | Current |
| Number of Non-Isolated Analog Output Commons | 1 |
| Number of Points per Analog Output Common | 2 |
| Output Resolution | 12-bit |
| Output Current Signal Range | 4-20 mA |
| Number of Discrete Input Points | 4 |
| Nominal Input Voltage | 24 VDC |
| Discrete Input Type | Sinking/sourcing |
| Number of Isolated Discrete Input Commons | 1 |
| Number of Points per Discrete Input Common | 4 |
| Number of Discrete Output Points | 4 |
| Nominal Output Voltage | 24 VDC |
| Discrete Output Type | Sourcing |
| Number of Isolated Discrete Output Commons | 1 |
| Number of Points per Discrete Output Common | 4 |
| Load Current | 0.1A/point |
| Number of High-Speed Capable Input Points | 4 |
| High-Speed Counter(s) |
|
| Interval Measurement |
|
| Duration Measurement |
|
| Frequency Measurement |
|
| Interrupt(s) |
|
| Table-Driven Input(s) |
|
| Fuse Type | User-supplied external fuse |
| Includes | Removable terminal block |
| Programming Software | CLICK programming software v3.0 or later and CLICK CPU firmware v3.0 or later |
