[2% off $311.00 ] CLICK ETHERNET STANDARD PLC, 24 VDC REQU
$304.78USD
Precio no incluye IVA
DESCUENTO EXCLUSIVO TIENDA EN LINEA

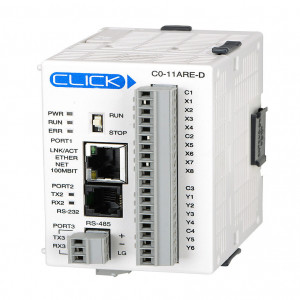

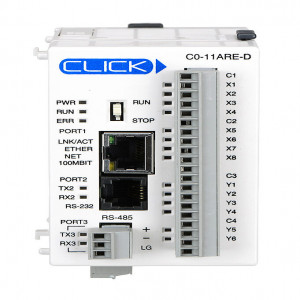

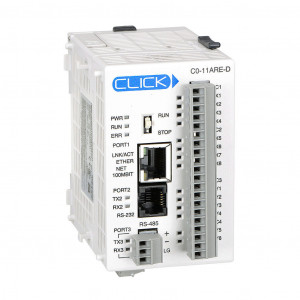

CLICK ETHERNET STANDARD PLC, 24 VDC REQUIRED, ETHERNET AND SERIAL PORTS, DISCRETE INPUT: 8-POINT, AC, DISCRETE OUTPUT: 6-POINT, RELAY.
Documentos:
Fecha Entrega:
Precio (no incluye IVA):
$304.78USD
Atributos del producto
| Brand | CLICK |
|---|---|
| Item | PLC |
| Series | Ethernet Standard |
| Ladder Memory | 8k steps |
| User Data Memory | 16 KB |
| Programming Language | Ladder |
| Programming Software | CLICK programming software v2.00 or later and CLICK CPU firmware v2.00 or later |
|---|---|
| Communication Port and Connection Type(s) |
|
| Port Protocol(s) |
|
| Port Speed(s) |
|
| Real Time Clock/Calendar | Yes |
| Retentive Memory | Yes |
| Battery Backup | Yes |
| Maximum Expansion Modules Allowed | 8 |
| External Power Requirement | 24 VDC |
| Number of Discrete Input Points | 8 |
| Nominal Input Voltage | 120 VAC |
| Voltage Type | AC |
| Number of Isolated Discrete Input Commons | 2 |
| Number of Points per Discrete Input Common | 4 |
| Number of Discrete Output Points | 6 |
| Nominal Output Voltage | 6-240 VAC/6-27 VDC |
| Discrete Output Type | Relay |
| Relay Type | (6) Form A (SPST) relays |
| Load Current | 1A/point |
| Number of Isolated Discrete Output Commons | 2 |
| Number of Points per Discrete Output Common | 4/2 |
| Maximum Number of PID Loops | 8 |
| Includes | Removable terminal block |
| Additional Information | Purchase D2-BAT-1 backup battery separately |
| DataSheet | https |
